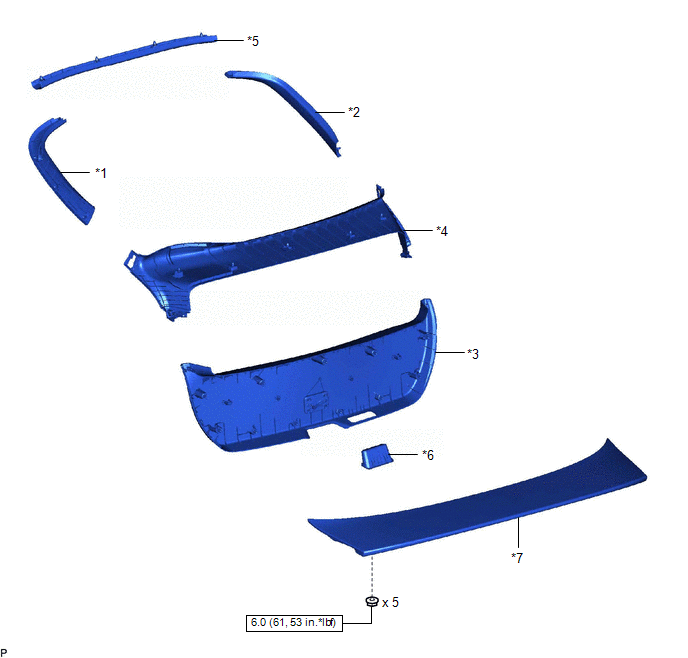

Components [11/2015 - ]
| Callout | Description | Callout | Description |
| *1 | BACK DOOR SIDE GARNISH LH | *2 | BACK DOOR SIDE GARNISH RH |
| *3 | BACK DOOR TRIM BOARD | *4 | BACK DOOR TRIM BOARD ASSEMBLY |
| *5 | BACK DOOR UPPER TRIM PANEL ASSEMBLY | *6 | DOOR PULL HANDLE |
| *7 | REAR SPOILER SUB-ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
| *A | for Type A | *B | for Type B |
| *C | w/ No. 2 Rear Spoiler Protector | - | - |

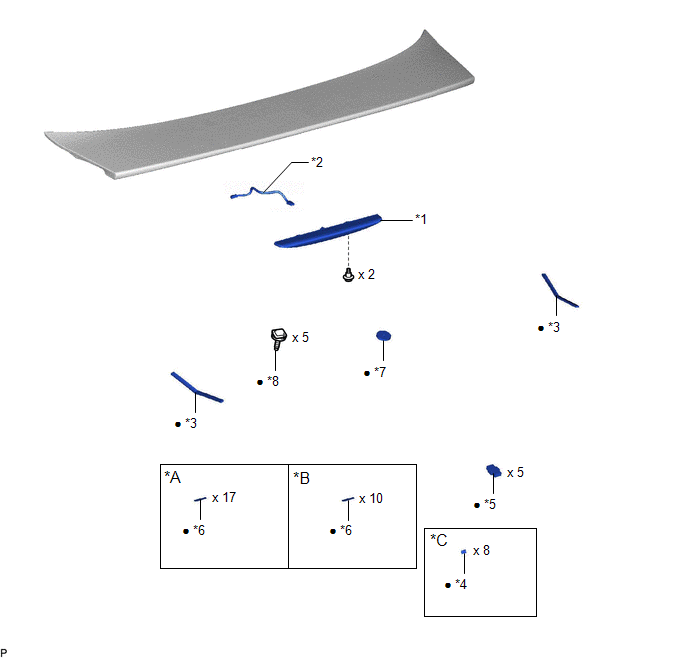

| *1 | CENTER STOP LIGHT ASSEMBLY | *2 | CENTER STOP LIGHT CORD ASSEMBLY |
| *3 | NO. 1 REAR SPOILER PROTECTOR | *4 | NO. 2 REAR SPOILER PROTECTOR |
| *5 | NO. 3 REAR SPOILER PROTECTOR | *6 | NO. 4 REAR SPOILER PROTECTOR |
| *7 | REAR SPOILER SEAL | *8 | BOLT |
| • | Non-reusable part | - | - |
