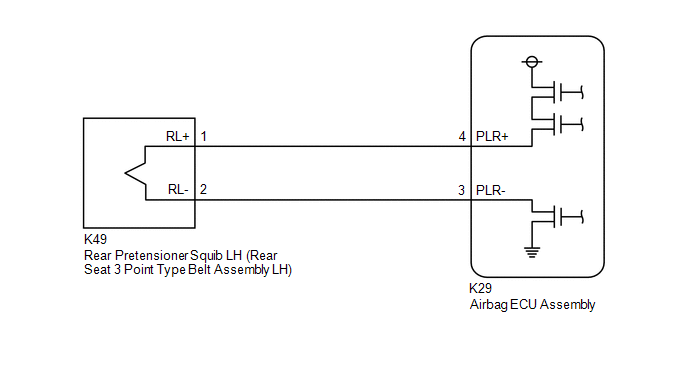

DTC B1925: Short in Rear P/T Squib (LH) Circuit; DTC B1926: Open in Rear P/T Squib (LH) Circuit; DTC B1927: Short in Rear P/T Squib (LH) Circuit (to Ground); DTC B1928: Short in Rear P/T Squib (LH) Circuit (to +B) [04/2018 -]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
GTY898213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
