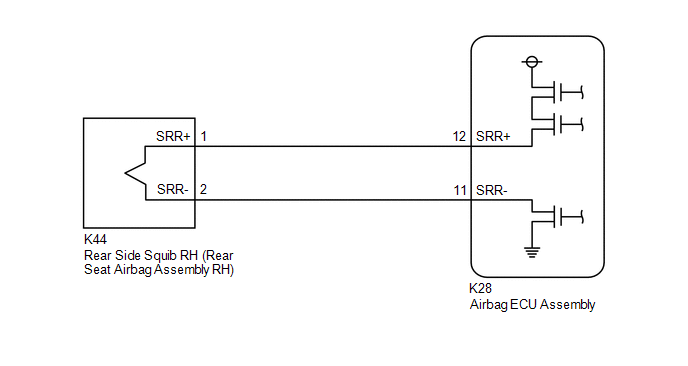

DTC B1850: Short in Rear Side Squib RH Circuit; DTC B1851: Open in Rear Side Squib RH Circuit; DTC B1852: Short to GND in Rear Side Squib RH Circuit; DTC B1853: Short to B+ in Rear Side Squib RH Circuit [04/2018 -]: Wiring Diagram

WARNING: This page is about a different car, the 2022 Toyota Avalon, 2021 Toyota Avalon, 2020 Toyota Avalon, and 2019 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
GTY898201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
