Components [12/2018 - ]

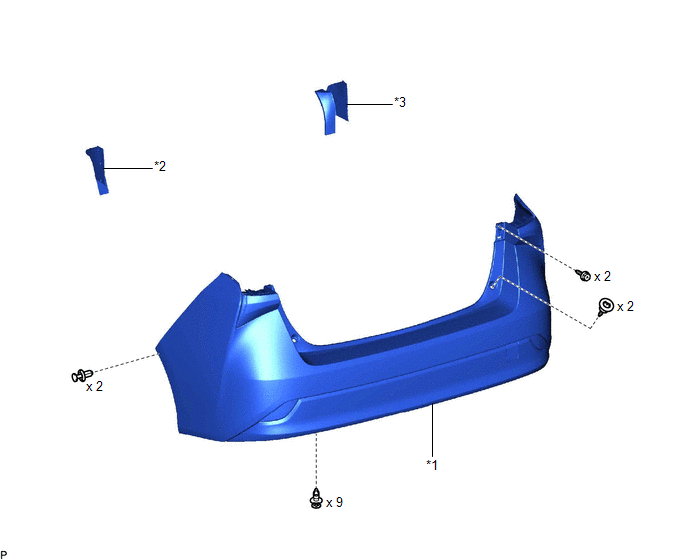

Fig 1: Rear Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER ASSEMBLY	*2	REAR COMBINATION LIGHT COVER LH
*3	REAR COMBINATION LIGHT COVER RH	-	-

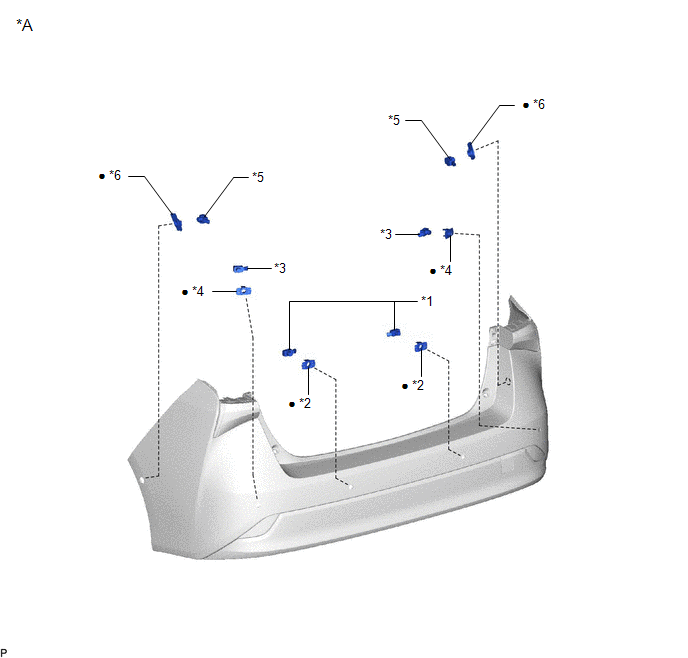

Fig 2: Rear Bumper Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/ Intuitive Parking Assist System	-	-
*1	REAR CENTER ULTRASONIC SENSOR	*2	REAR CENTER ULTRASONIC SENSOR RETAINER
*3	REAR CORNER ULTRASONIC SENSOR	*4	REAR CORNER ULTRASONIC SENSOR RETAINER
*5	REAR SIDE ULTRASONIC SENSOR	*6	REAR SIDE ULTRASONIC SENSOR RETAINER
•	Non-reusable part	-	-

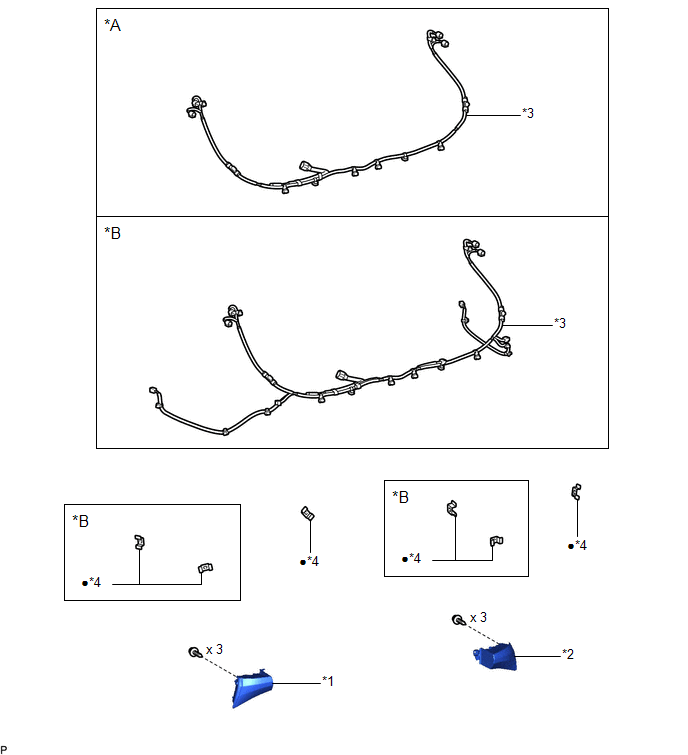

Fig 3: Rear Bumper Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Intuitive Parking Assist System	*B	w/ Intuitive Parking Assist System
*1	NO. 2 REAR COMBINATION LIGHT ASSEMBLY LH	*2	NO. 2 REAR COMBINATION LIGHT ASSEMBLY RH
*3	NO. 3 LUGGAGE ROOM WIRE	*4	ULTRASONIC SENSOR CLIP
•	Non-reusable part	-	-

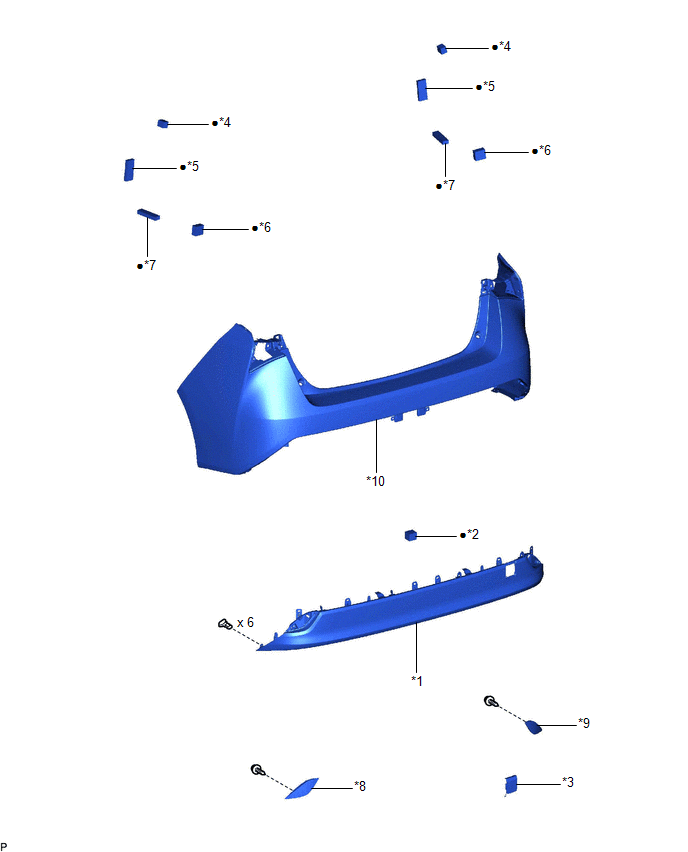

Fig 4: Rear Bumper Replacement Components (4 Of 5)

*1	CENTER REAR BUMPER GUARD	*2	CENTER REAR BUMPER PAD
*3	LOWER REAR BUMPER COVER	*4	NO. 1 REAR BUMPER PAD
*5	NO. 2 REAR BUMPER PAD	*6	NO. 3 REAR BUMPER PAD
*7	REAR BUMPER ARM SEAL	*8	REFLEX REFLECTOR ASSEMBLY LH
*9	REFLEX REFLECTOR ASSEMBLY RH	*10	REAR BUMPER COVER
•	Non-reusable part	-	-

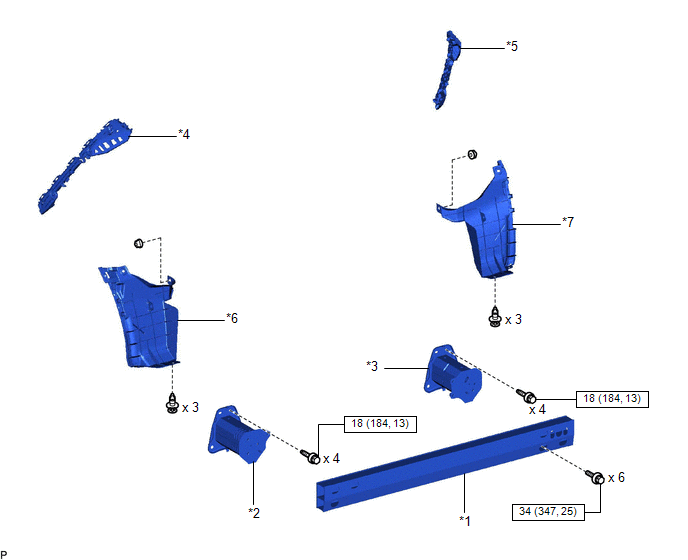

Fig 5: Rear Bumper Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	NO. 1 REAR BUMPER REINFORCEMENT	*2	REAR BUMPER ARM SUB-ASSEMBLY LH
*3	REAR BUMPER ARM SUB-ASSEMBLY RH	*4	REAR BUMPER SIDE RETAINER LH
*5	REAR BUMPER SIDE RETAINER RH	*6	REAR BUMPER SIDE SEAL LH
*7	REAR BUMPER SIDE SEAL RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
