Components [11/2015 - 12/2018]

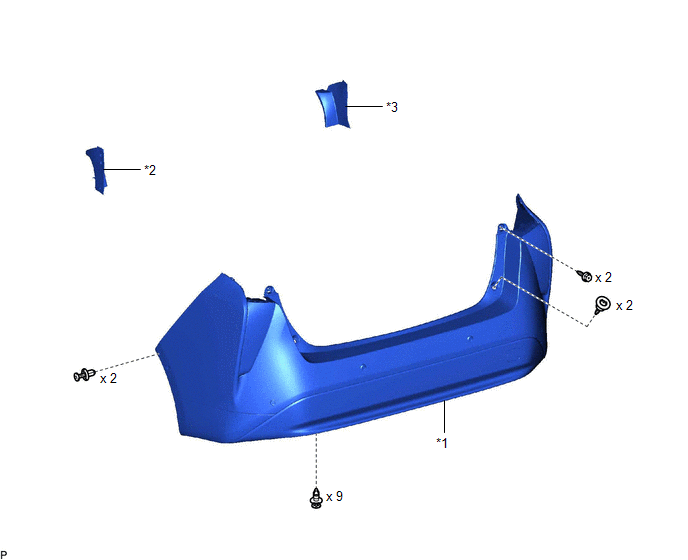

Fig 1: Rear Bumper Replacement Components (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	REAR BUMPER ASSEMBLY	*2	REAR COMBINATION LIGHT COVER LH
*3	REAR COMBINATION LIGHT COVER RH	-	-

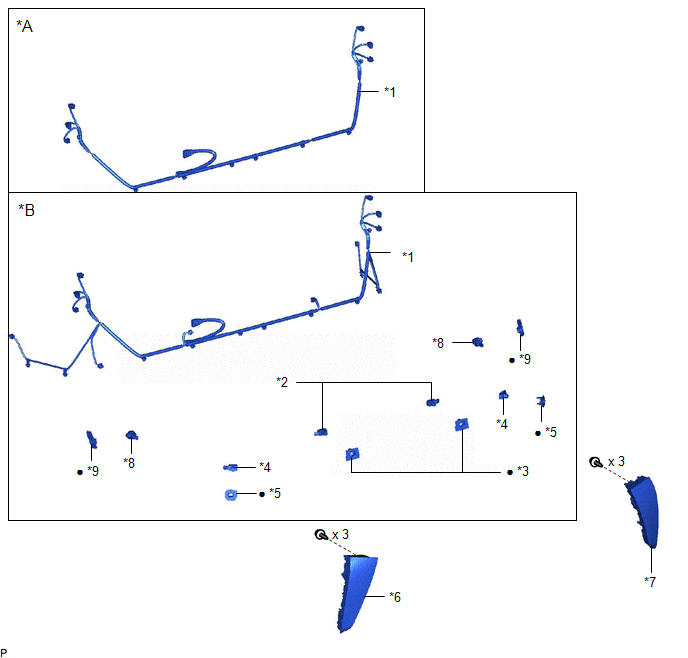

Fig 2: Rear Bumper Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Intuitive Parking Assist System	*B	w/ Intuitive Parking Assist System
*1	NO. 3 LUGGAGE ROOM WIRE	*2	REAR CENTER ULTRASONIC SENSOR
*3	REAR CENTER ULTRASONIC SENSOR RETAINER	*4	REAR CORNER ULTRASONIC SENSOR
*5	REAR CORNER ULTRASONIC SENSOR RETAINER	*6	REAR LIGHT ASSEMBLY LH
*7	REAR LIGHT ASSEMBLY RH	*8	REAR SIDE ULTRASONIC SENSOR
*9	REAR SIDE ULTRASONIC SENSOR RETAINER	-	-
•	Non-reusable part	-	-

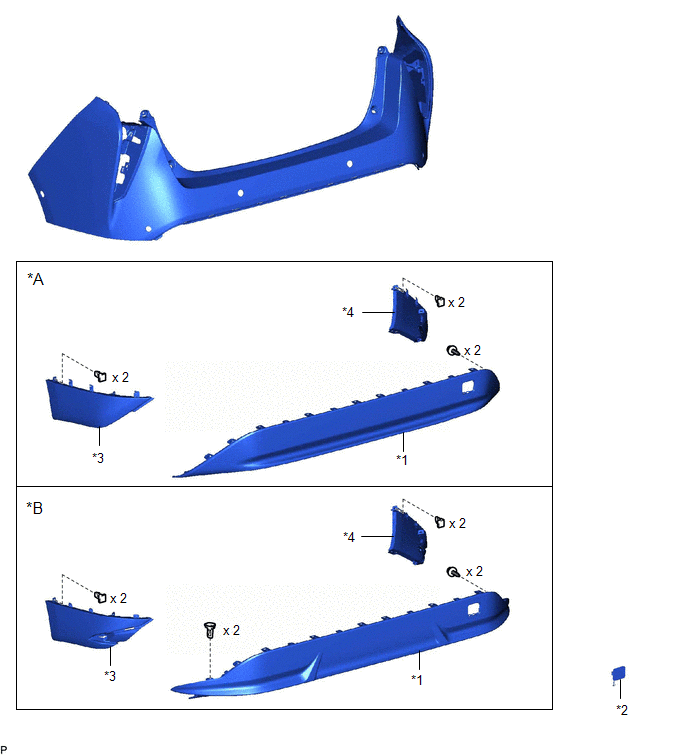

Fig 3: Rear Bumper Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Type A	*B	for Type B
*1	CENTER REAR BUMPER GUARD	*2	LOWER REAR BUMPER COVER
*3	REAR BUMPER EXTENSION FILLER LH	*4	REAR BUMPER EXTENSION FILLER RH

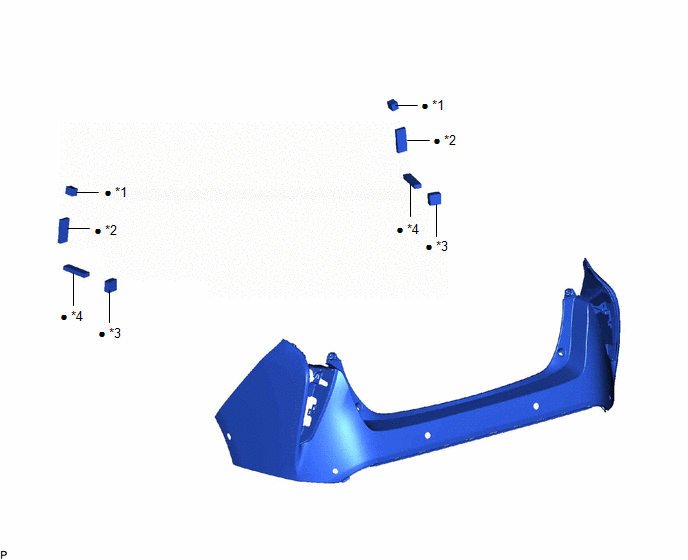

Fig 4: Rear Bumper Replacement Components (4 Of 5)

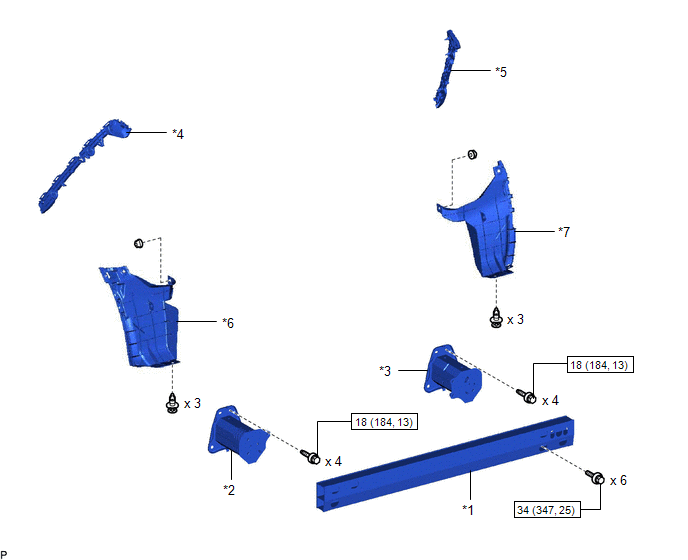

Fig 5: Rear Bumper Replacement Components With Torque Specifications (5 Of 5)

Callout	Description	Callout	Description
*1	NO. 1 REAR BUMPER REINFORCEMENT	*2	REAR BUMPER ARM SUB-ASSEMBLY LH
*3	REAR BUMPER ARM SUB-ASSEMBLY RH	*4	REAR BUMPER SIDE RETAINER LH
*5	REAR BUMPER SIDE RETAINER RH	*6	REAR BUMPER SIDE SEAL LH
*7	REAR BUMPER SIDE SEAL RH	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-
