Components [12/2018 - ]

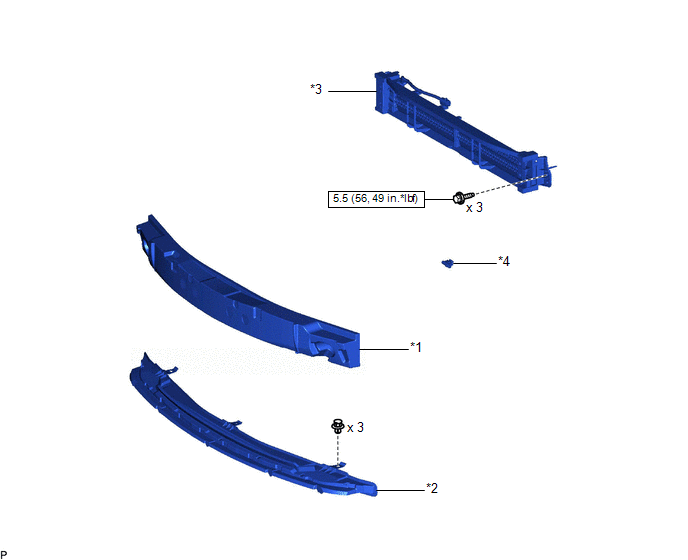

| Callout | Description | Callout | Description |
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | LOWER FRONT BUMPER ABSORBER |
| *3 | RADIATOR SHUTTER SUB-ASSEMBLY | *4 | THERMISTOR ASSEMBLY |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

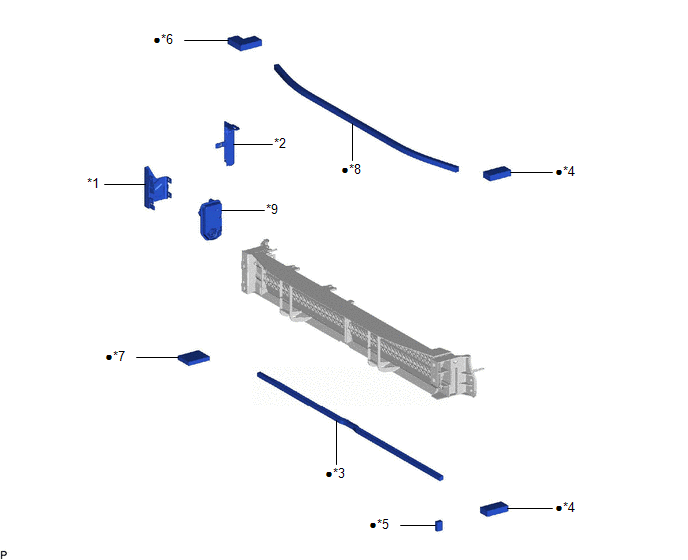

| *1 | NO. 1 MOTOR COVER | *2 | NO. 2 MOTOR COVER |
| *3 | NO. 2 RADIATOR GRILLE SEAL | *4 | NO. 3 RADIATOR GRILLE SEAL |
| *5 | NO. 4 RADIATOR GRILLE SEAL | *6 | NO. 5 RADIATOR GRILLE SEAL |
| *7 | NO. 6 RADIATOR GRILLE SEAL | *8 | RADIATOR GRILLE SEAL |
| *9 | SWING GRILLE ACTUATOR ASSEMBLY | - | - |
| • | Non-reusable part | - | - |
