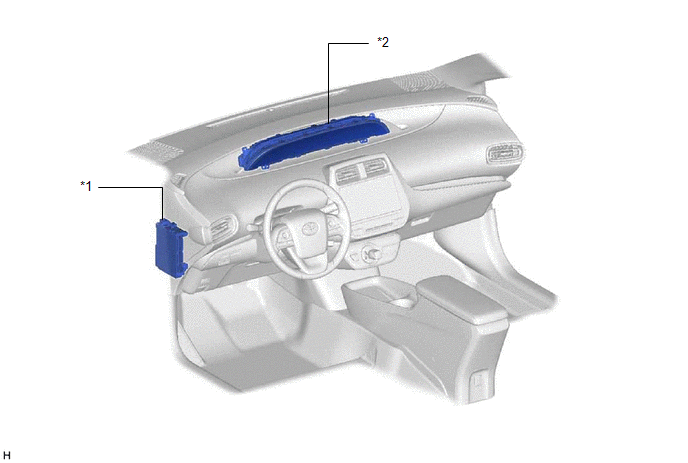

Parts Location [11/2015 -]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - METER-IG2 FUSE - ECU-DCC NO. 2 FUSE

*2

COMBINATION METER ASSEMBLY - COMBINATION METER MULTI-DISPLAY - METER CIRCUIT PLATE
