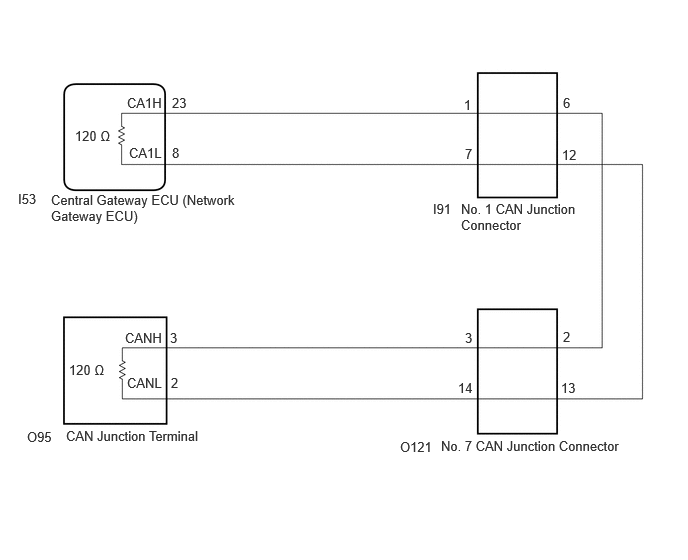

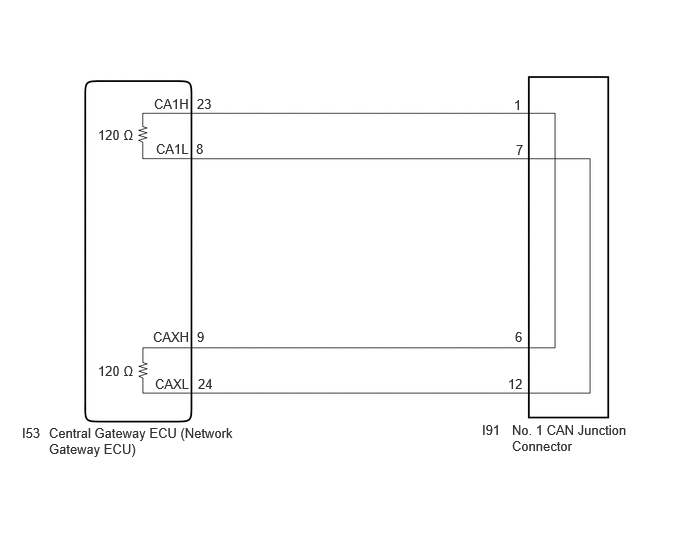

Open in Bus 1 Main Bus Line [09/2022 - 11/2022]: Wiring Diagram

WARNING: This page is about a different car, the 2023 Toyota GR Corolla and 2023 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.
