DTC B0052-13: Passenger Seat Belt Sensor Circuit Open [11/2022 - ]: Procedure

Pre-procedure1

1. Turn the ignition switch off.
2. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.

   Procedure1

3. Check that the connectors are properly connected to the airbag sensor assembly and front seat inner belt assembly RH.

   OK

   The connectors are properly connected.

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

CONNECT CONNECTORS PROPERLY

Result:

OK

See step  2

Pre-procedure1

1. Disconnect the airbag sensor assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Inner Belt Assembly RH
   *2	Airbag Sensor Assembly
   *3	Wire Harness

2. Disconnect the front seat inner belt assembly RH connector.

   Procedure1

3. Check that the terminals of the connectors are not deformed or damaged.

   OK

   The terminals are not deformed or damaged.

   Result

   Proceed to
   OK
   NG

   Post-procedure1

4. None

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

Pre-procedure1

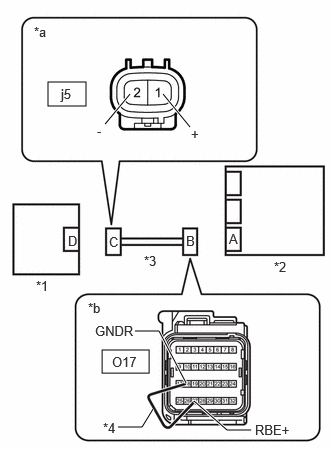

1. Using a service wire, connect terminals 27 (RBE+) and 18 (GNDR) of connector B.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Inner Belt Assembly RH
   *2	Airbag Sensor Assembly
   *3	Wire Harness
   *4	Service Wire
   *a	Front view of wire harness connector (to Front Seat Inner Belt Assembly RH)
   *b	Front view of wire harness connector (to Airbag Sensor Assembly)

   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

   Procedure1

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   j5-1 (+) - j5-2 (-)	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

   Post-procedure1

3. Disconnect the service wire from connector B.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

Pre-procedure1

1. Using a service wire, connect terminals 1 (+) and 2 (-) of connector C.
   NOTE:

   Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Front Seat Inner Belt Assembly RH
   *2	Airbag Sensor Assembly
   *3	Wire Harness
   *4	Service Wire
   *a	Front view of wire harness connector (to Front Seat Inner Belt Assembly RH)

2. Connect the airbag sensor assembly connector.
3. Connect the cable to the negative (-) auxiliary battery terminal, and wait for at least 2 seconds.
4. Turn the ignition switch to ON, and wait for at least 60 seconds.

   Procedure1

5. Clear the DTCs stored in memory.

   Body Electrical > SRS Airbag > Clear DTCs

   Result

   Proceed to
   NEXT

   Post-procedure1

6. Turn the ignition switch off.

Result:

NEXT

See step  5

Pre-procedure1

1. Turn the ignition switch to ON, and wait for at least 60 seconds.

   Procedure1

2. Check for DTCs.

   Body Electrical > SRS Airbag > Trouble Codes

   Result

   Result	Proceed to
   B0052-13 is output	A
   B0052-13 is not output	B

   HINT:

   Codes other than DTC B0052-13 may be output at this time, but they are not related to this check.

   Post-procedure1

3. Turn the ignition switch off.
4. Disconnect the cable from the negative (-) auxiliary battery terminal, and wait for at least 60 seconds.
5. Disconnect the service wire from connector C.

Result:

A

REPLACE AIRBAG SENSOR ASSEMBLY

Refer to REMOVAL [11/2022 - ]

Result:

B

REPLACE FRONT SEAT INNER BELT ASSEMBLY RH

Refer to REMOVAL [11/2022 - ]
