Terminals Of Ecu [09/2022 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2025 Toyota GR Corolla, 2025 Toyota Corolla, 2024 Toyota GR Corolla, 2024 Toyota Corolla, and 2023 Toyota GR Corolla. However, it is still accessible from the selected car via links, so may be relevant.
- TERMINAL INSPECTION
- Disconnect the A140 skid control ECU (brake actuator assembly) connector and measure the voltage or resistance on the wire harness side.

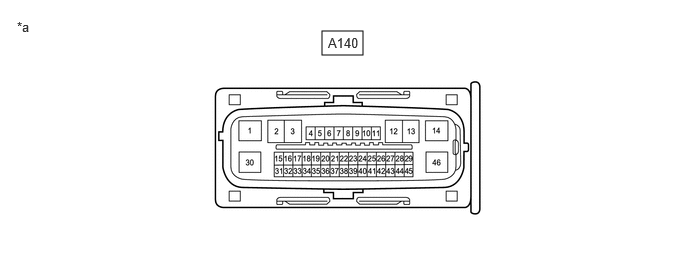

*a Front view of wire harness connector
(to Skid Control ECU (Brake Actuator Assembly))- - HINT:
- Voltage cannot be measured with the connector connected to the skid control (brake actuator assembly) as the connector is watertight.
- Use the GTS to read data and perform Active Tests when inspecting the operation and communication status of the brake actuator assembly.
Refer to DATA LIST / ACTIVE TEST [09/2022 - 09/2024] , or refer to DATA LIST / ACTIVE TEST [09/2024 - ]
Terminal No. (Symbol) Terminal Description Condition Specified Condition A140-1 (GND1) - Body ground Skid control ECU (brake actuator assembly) ground 1 minute or more after disconnecting the cable from the negative (-) battery terminal Below 1 Ω A140-2 - - - A140-3 - - - A140-4 (RL-) Rear wheel speed LH (-) signal input - - A140-5 (RL+) Rear wheel speed LH (+) power supply output - - A140-6 (FR-) Front wheel speed RH (-) signal input - - A140-7 (FR+) Front wheel speed RH (+) power supply output - - A140-8 - - - A140-9 (CSW) - Body ground VSC OFF switch (combination switch assembly) input VSC OFF switch (combination switch assembly) is pushed → released Below 1 Ω → 10 kΩ or higher A140-10 - - - A140-11 (STP) - Body ground Stop light switch assembly input Stop light switch assembly on → off
(brake pedal depressed → released)8 to 14 V → Below 1.5 V A140-12 - - - A140-13 - - - A140-14 (+BS) - Body ground Solenoid relay power supply Always 11 to 14 V A140-15 - - - A140-16 (CA2H) CAN communication line H - - A140-17 (CA2L) CAN communication line L - - A140-18 (SP1) - Body ground Speed signal output for speedometer Ignition switch ON 11 to 14 V A140-19 (RR-) Rear wheel speed RH (-) signal input - - A140-20 (RR+) Rear wheel speed RH (+) power supply output - - A140-21 (FL-) Front wheel speed LH (-) signal input - - A140-22 (FL+) Front wheel speed LH (+) power supply output - - A140-23 - - - A140-24 - - - A140-25 - - - A140-26 - - - A140-27 (CANH) CAN communication line H - - A140-28 - - - A140-29 - - - A140-30 (GND2) - Body ground Pump motor ground 1 minute or more after disconnecting the cable from the negative (-) battery terminal Below 1 Ω A140-31 - - - A140-32 (STPO) - Body ground Stop light control relay (stop light switch assembly) output Ignition switch ON 11 to 14 V A140-33 - - - A140-34 - - - A140-35 - - - A140-36 - - - A140-37 (STP2) - Body ground Stop light signal input Brake pedal depressed → released 8 to 14 V → Below 1.5 V A140-38 - - - A140-39 - - - A140-40 - - - A140-41 - - - A140-42 - - - A140-43 (CANL) CAN communication line L - - A140-44 - - - A140-45 (IGR) - Body ground ECU power supply input Ignition switch ON 11 to 14 V A140-46 (BM) - Body ground Motor relay power supply Always 11 to 14 V
- Disconnect the A140 skid control ECU (brake actuator assembly) connector and measure the voltage or resistance on the wire harness side.
