Removal [11/2022 - ]: Procedure

  1. REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY

    Refer to REMOVAL [11/2022 - 11/2023] , or refer to REMOVAL [11/2023 - ]

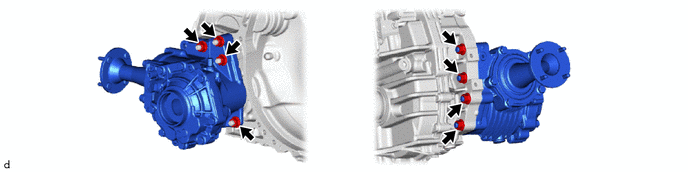

  2. REMOVE TRANSFER ASSEMBLY
    1. GTY1035291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
