Caution / Notice / Hint

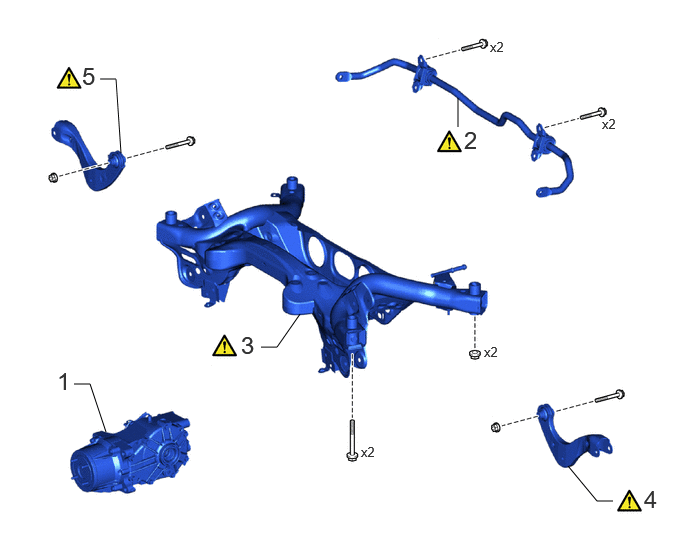

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR DIFFERENTIAL CARRIER SUB-ASSEMBLY | 41101 | - | - | - |
| 2 | REAR STABILIZER BAR | 48812 | See step 2 | - | - |
| 3 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | 51206A | See step 3 | - | - |
| 4 | REAR UPPER CONTROL ARM ASSEMBLY LH | 48790 | See step 4 | - | - |
| 5 | REAR UPPER CONTROL ARM ASSEMBLY RH | 48770A | See step 4 | - | - |

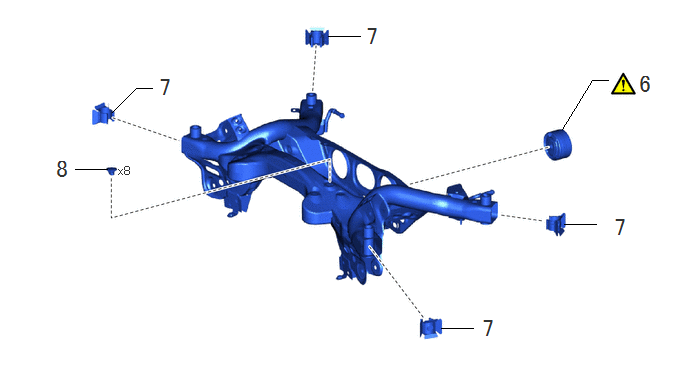

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 6 | REAR NO. 1 DIFFERENTIAL MOUNT CUSHION | 41651 | See step 6 | - | - |
| 7 | REAR SUSPENSION MEMBER HOLE COVER | 51284 | - | - | - |
| 8 | HOLE PLUG | - | - | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension crossmember sub-assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Rear wheel alignment adjustment | Perform "Reset Memory" | Dynamic torque control AWD system | Refer to CALIBRATION [09/2021 - ] |
|
|
Refer to UTILITY [09/2021 - 11/2022] | |
| Suspension, tires, etc. | Rear television camera assembly optical axis (Back camera position setting) | Parking assist monitor system | Refer to CALIBRATION [09/2021 - 11/2022] |
| Initialize headlight ECU sub-assembly LH | Automatic headlight beam level control system | Refer to INITIALIZATION [09/2021 - 11/2022] |
WARNING:
To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
