COMPONENTS (REMOVAL)

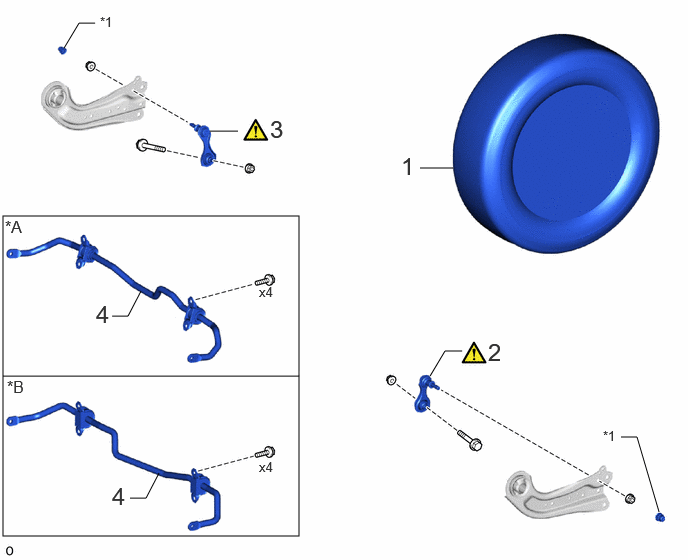

Fig 1: Rear Stabilizer Bar Removal Components [11/2022 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR WHEEL	-	-	-	-
2	REAR STABILIZER LINK ASSEMBLY LH	48840A	See step 2	-	-
3	REAR STABILIZER LINK ASSEMBLY RH	48830D	See step 3	-	-
4	REAR STABILIZER BAR	48812	-	-	-

*A	for Gasoline Model	*B	for HEV Model
*1	CAP	-	-

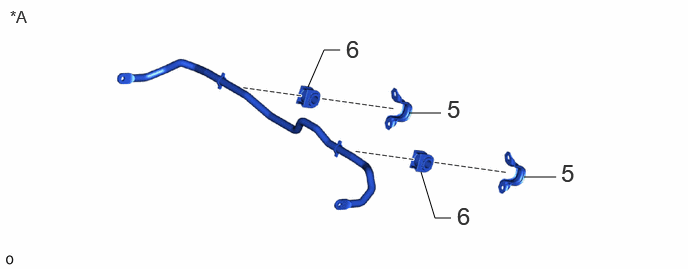

Fig 2: Rear Stabilizer Bar Removal Components [11/2022 - ] (2 Of 2)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	REAR NO. 1 STABILIZER BAR BRACKET	48832A	-	-	-
6	REAR STABILIZER BAR BUSH	48818	-	-	-

for Gasoline Model
