Caution / Notice / Hint

COMPONENTS (REMOVAL)

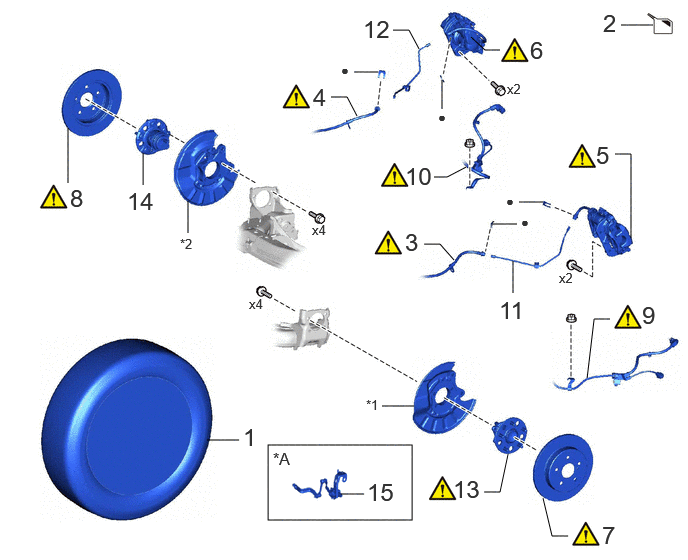

Fig 1: Rear Axle Beam Removal Components [09/2021 - 11/2022] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR WHEELS	-	-	-	-
2	DRAIN BRAKE FLUID	-	-	See step 2	-
3	REAR BRAKE TUBE FLEXIBLE HOSE LH	-	See step 3	-	-
4	REAR BRAKE TUBE FLEXIBLE HOSE RH	-	See step 3	-	-
5	REAR DISC BRAKE CALIPER ASSEMBLY LH	-	See step 5	-	-
6	REAR DISC BRAKE CALIPER ASSEMBLY RH	-	See step 5	-	-
7	REAR DISC (for LH Side)	42431	See step 7	-	-
8	REAR DISC (for RH Side)	42431	See step 7	-	-
9	SKID CONTROL SENSOR WIRE LH	89544E	See step 9	-	-
10	SKID CONTROL SENSOR WIRE RH	89544D	See step 9	-	-
11	REAR NO. 4 BRAKE TUBE	47324	-	-	-
12	REAR NO. 3 BRAKE TUBE	47323	-	-	-
13	REAR AXLE HUB AND BEARING ASSEMBLY LH	42450B	See step 13	-	-
14	REAR AXLE HUB AND BEARING ASSEMBLY RH	42450A	See step 13	-	-
15	REAR HEIGHT CONTROL SENSOR LH	89408C	-	-	-

*A	w/ Height Control Sensor	-	-
*1	REAR DISC BRAKE DUST COVER SUB-ASSEMBLY LH	*2	REAR DISC BRAKE DUST COVER SUB-ASSEMBLY RH
•	Non-reusable part	-	-

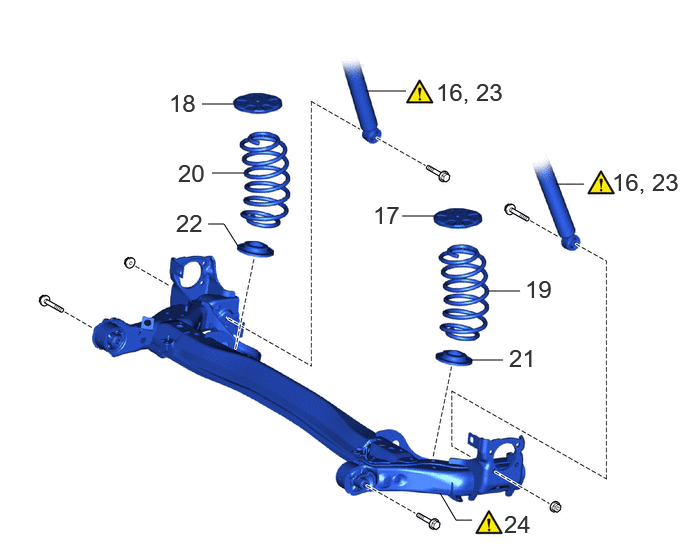

Fig 2: Rear Axle Beam Removal Components [09/2021 - 11/2022] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16	SEPARATE REAR SHOCK ABSORBER ASSEMBLY	-	See step 16	-	-
17	REAR UPPER COIL SPRING INSULATOR LH	48259A	-	-	-
18	REAR UPPER COIL SPRING INSULATOR RH	48257C	-	-	-
19	REAR COIL SPRING LH	48231B	-	-	-
20	REAR COIL SPRING RH	48231A	-	-	-
21	REAR LOWER COIL SPRING INSULATOR LH	48258C	-	-	-
22	REAR LOWER COIL SPRING INSULATOR RH	48258B	-	-	-
23	TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY	-	See step 23	-	-
24	REAR AXLE BEAM ASSEMBLY	42110F	See step 24	-	-

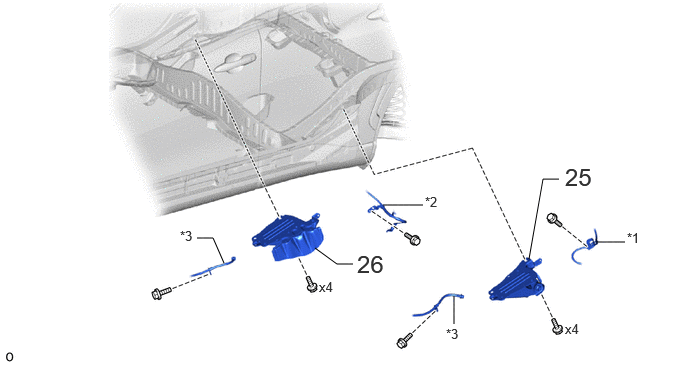

Fig 3: Rear Axle Beam Removal Components [09/2021 - 11/2022] (3 Of 3)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
25	REAR SUSPENSION ARM BRACKET LH	48727	-	-	-
26	REAR SUSPENSION ARM BRACKET RH	48717	-	-	-

*1	SKID CONTROL SENSOR WIRE LH	*2	SKID CONTROL SENSOR WIRE RH
*3	REAR BRAKE TUBE FLEXIBLE HOSE	-	-

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear axle beam assembly removal/ installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear wheel alignment adjustment	Perform "Reset Memory" Perform acceleration sensor zero point calibration and store system information memorization	VSC is disabled or malfunctions DTCs are output Slip indicator light illuminates ABS warning light illuminates	Refer to UTILITY [09/2021 - 11/2022]
Suspension, tires, etc.	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [09/2021 - 11/2022]
Suspension, tires, etc.	Initialize headlight ECU sub-assembly LH	Automatic headlight beam level control system	Refer to INITIALIZATION [09/2021 - 11/2022]
