Caution / Notice / Hint

COMPONENTS (REMOVAL)

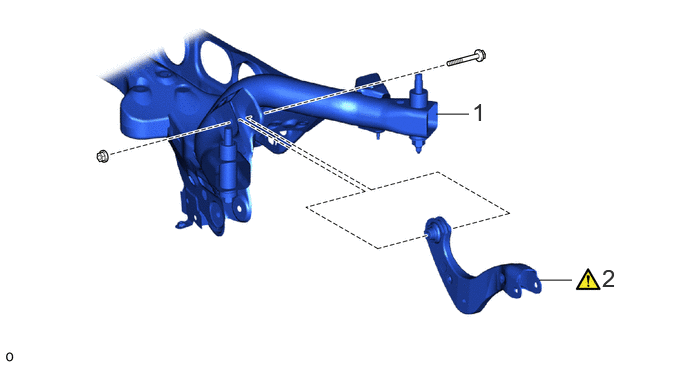

Fig 1: Rear Upper Arm Removal Components [11/2022 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	-	-	-
2	REAR UPPER CONTROL ARM ASSEMBLY	48790	See step  2	-	-

HINT:

• Use the same procedure for the RH side and LH side.
• The following procedure is for the LH side.
