Removal [09/2021 - 11/2022]: Procedure

Refer to REMOVAL [09/2021 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Wooden Block

   *b

   Transmission Jack

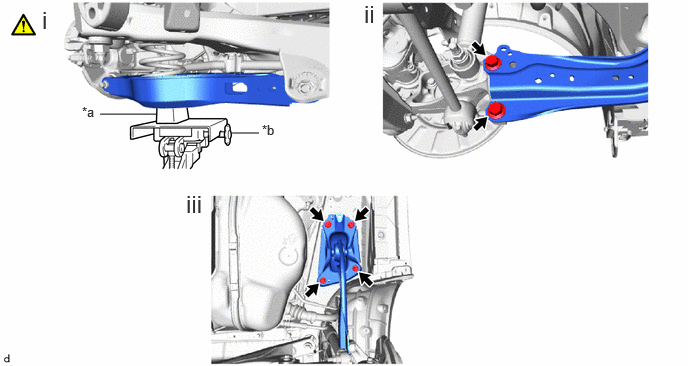

   1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
      NOTE:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
      • Make sure to perform this operation with the vehicle kept as low as possible.
   2. Remove the 2 bolts to separate the rear trailing arm assembly from the rear axle carrier sub-assembly.
   3. Remove the 4 bolts and rear trailing arm assembly.

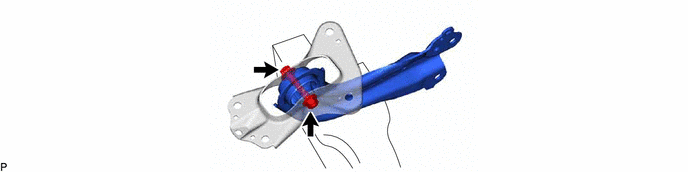

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Secure the rear trailing arm assembly in a vise using aluminum plates.
      NOTE:

      Do not overtighten the vise.

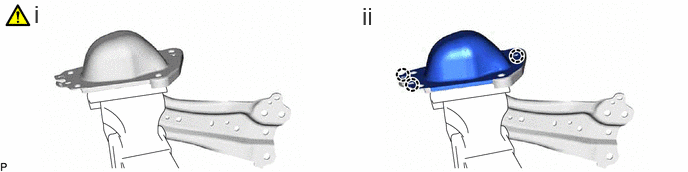

   2. Disengage the 3 claws to remove the rear No. 1 suspension support cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

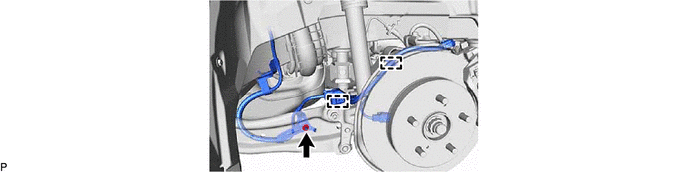

NOTE: Loosen the nut with the bolt secured.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
