Caution / Notice / Hint

COMPONENTS (REMOVAL)

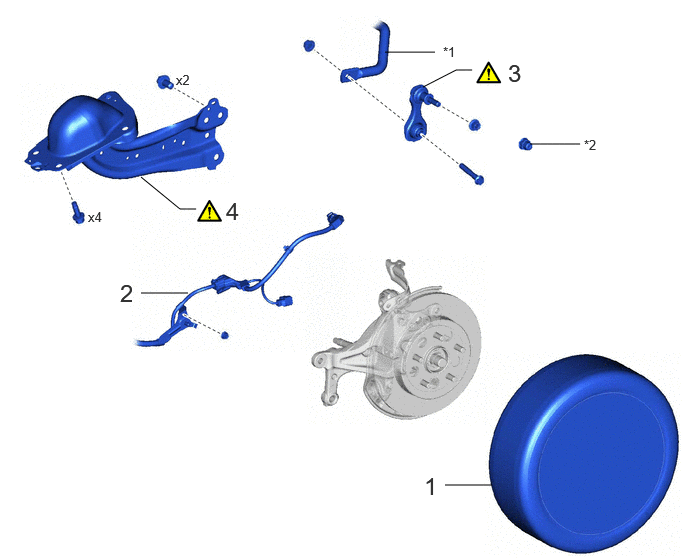

Fig 1: Rear Trailing Arm Removal Components [09/2021 - 11/2022] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	REAR WHEEL	-	-	-	-
2	NO. 2 PARKING BRAKE CABLE ASSEMBLY	46430	-	-	-
3	REAR STABILIZER LINK ASSEMBLY	89546	See step 3	-	-
4	REAR TRAILING ARM ASSEMBLY	48840A	See step 4	-	-

REAR STABILIZER BAR

CAP

Fig 2: Rear Trailing Arm Removal Components [09/2021 - 11/2022] (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5	REAR NO. 1 SUSPENSION SUPPORT COVER	48753C	See step 5	-	-
6	REAR SUSPENSION ARM BRACKET	48727	See step 6	-	-

REAR TRAILING ARM ASSEMBLY

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear trailing arm assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Rear wheel alignment adjustment	Perform "Reset Memory"	Dynamic torque control AWD system	Refer to CALIBRATION [09/2021 - ]
Rear wheel alignment adjustment	Perform "Reset Memory" Perform acceleration sensor zero point calibration and store system information memorization	VSC is disabled or malfunctions DTCs are output Slip indicator light illuminates ABS warning light illuminates	Refer to UTILITY [09/2021 - 11/2022]
Suspension, tires, etc.	Rear television camera assembly optical axis (Back camera position setting)	Parking assist monitor system	Refer to CALIBRATION [09/2021 - 11/2022]
Suspension, tires, etc.	Initialize headlight ECU sub-assembly LH	Automatic headlight beam level control system	Refer to INITIALIZATION [09/2021 - 11/2022]

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.
