Removal [11/2022 - ]: Procedure

REMOVE REAR WHEEL
Refer to REMOVAL [09/2021 - ]
REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)
for LH Side:

Refer to PROCEDURE - Step 2

REMOVE REAR STABILIZER LINK ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 4

REMOVE REAR COIL SPRING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step 5

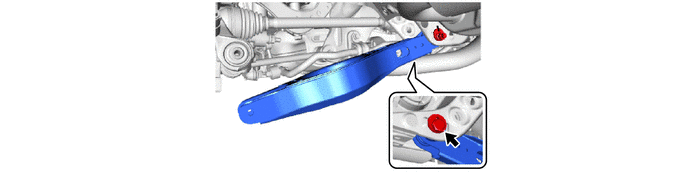

REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Hold the rear suspension toe adjust cam subassembly while rotating the nut.

for Gasoline Model:

for HEV Model:

REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

NOTE:

Loosen the bolt with the nut secured.
