Caution / Notice / Hint

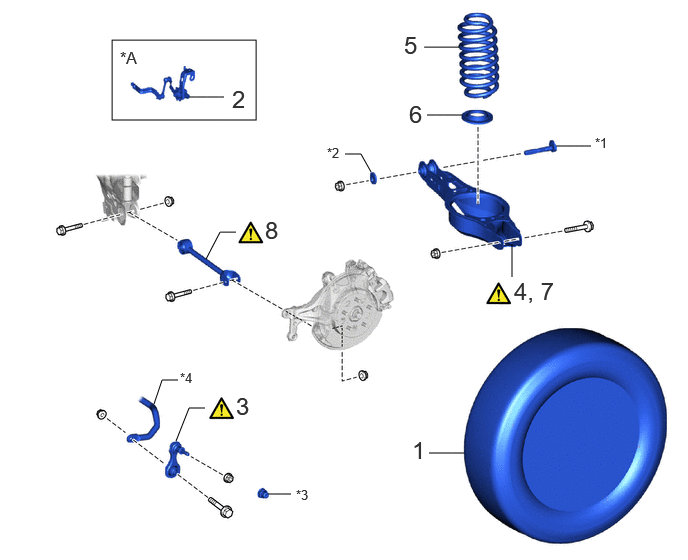

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR WHEEL | - | - | - | - |
| 2 | REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH | 89408C | - | - | - |
| 3 | REAR STABILIZER LINK ASSEMBLY | 48840A | See step 3 | - | - |
| 4 | SEPARATE REAR NO. 2 SUSPENSION ARM ASSEMBLY | 48740F | See step 4 | - | - |
| 5 | REAR COIL SPRING | 48231B | - | - | - |
| 6 | REAR LOWER COIL SPRING INSULATOR | 48258C | - | - | - |
| 7 | REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY | 48740F | See step 7 | - | - |
| 8 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | 48720A | See step 8 | - | - |
| *A | w/ Height Control Sensor | - | - |
| *1 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY | *2 | NO. 2 CAMBER ADJUST CAM |
| *3 | CAP | *4 | REAR STABILIZER BAR |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear suspension arm assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Rear wheel alignment adjustment | Perform "Reset Memory" | Dynamic torque control AWD system | Refer to CALIBRATION [09/2021 - ] |
|
|
Refer to UTILITY [09/2021 - 11/2022] | |
| Suspension, tires, etc. | Rear television camera assembly optical axis (Back camera position setting) | Parking assist monitor system | Refer to CALIBRATION [09/2021 - 11/2022] |
| Initialize headlight ECU sub-assembly LH | Automatic headlight beam level control system | Refer to INITIALIZATION [09/2021 - 11/2022] |
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
