Removal [11/2022 - ]: Procedure

  1. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [11/2022 - ]

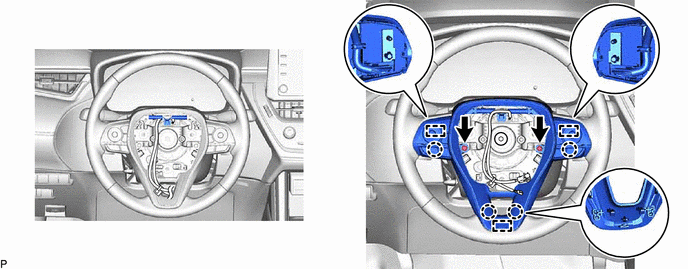

  2. REMOVE STEERING PAD SWITCH ASSEMBLY

    HINT:

    As the illustration shown is an example, the actual details may differ.

    1. GTY1034549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
