Caution / Notice / Hint

COMPONENTS (REMOVAL)

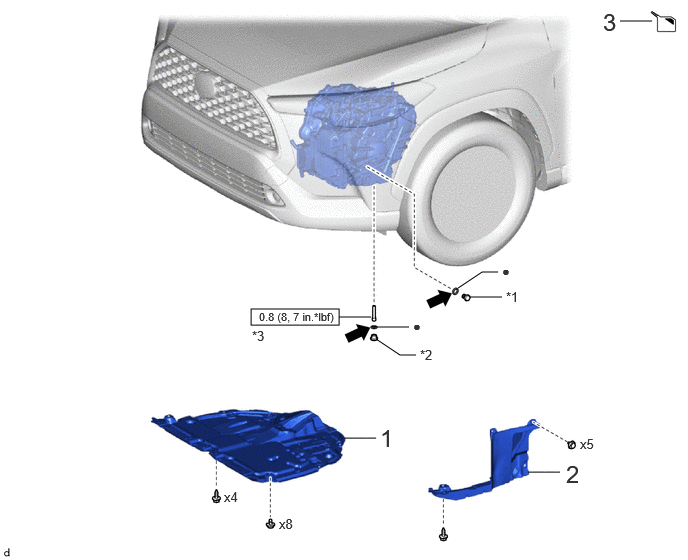

Fig 1: Oil Pan Removal Components With Torque Specifications [09/2021 - 11/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	NO. 1 ENGINE UNDER COVER ASSEMBLY	51410	-	-	-
2	REAR ENGINE UNDER COVER LH	51444A	-	-	-
3	DRAIN CONTINUOUSLY VARIABLE TRANSAXLE FLUID	-	-	See step  3	-

*1	REFILL PLUG	*2	OVERFLOW PLUG
*3	OVERFLOW (CVT) TUBE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

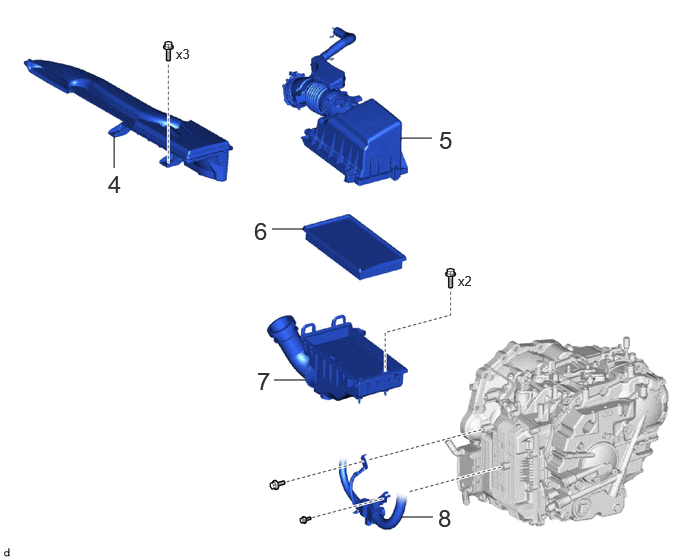

Fig 2: Oil Pan Removal Components [09/2021 - 11/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4	INLET NO. 1 AIR CLEANER	17751	-	-	-
5	AIR CLEANER CAP WITH AIR CLEANER HOSE	-	-	-	-
6	AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY	17801	-	-	-
7	AIR CLEANER CASE SUB-ASSEMBLY	17701	-	-	-
8	ENGINE WIRE	82121	-	-	-

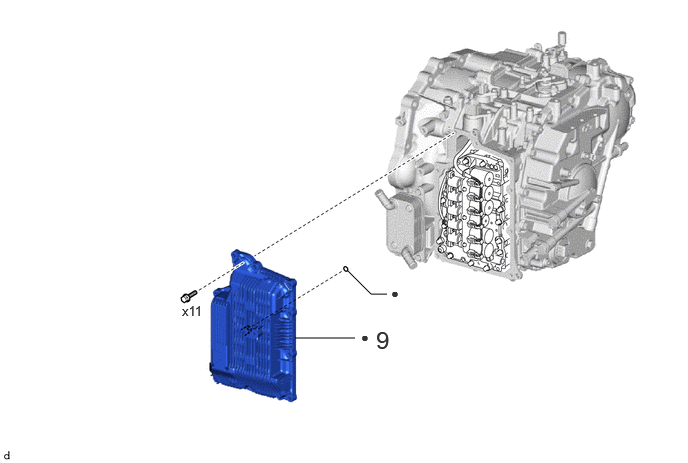

Fig 3: Oil Pan Removal Components [09/2021 - 11/2023] (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9	TRANSAXLE SIDE COVER SUB-ASSEMBLY	35015Y	-	-	-

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transaxle side cover sub-assembly removal/installation are shown below.
