Components [09/2021 - 11/2023]

WARNING: This page is about a different variant/trim than selected.

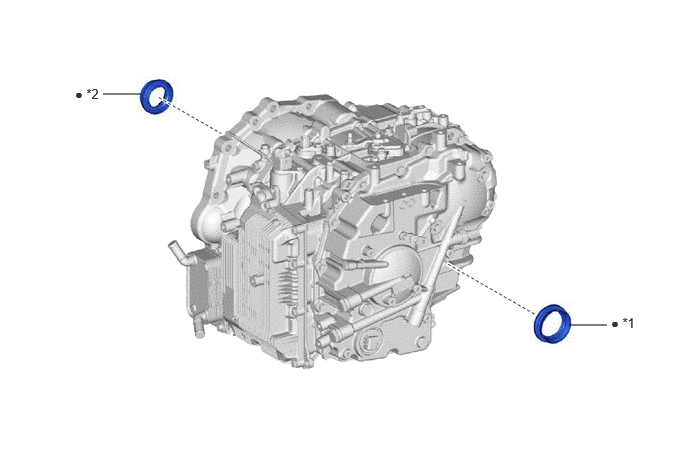

Fig 1: Front Differential Oil Seal Replacement Components [09/2021 - 11/2023]
GTY1035909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT DRIVE SHAFT OIL SEAL LH *2 FRONT DRIVE SHAFT OIL SEAL RH
• Non-reusable part - -
