Components [09/2021 - 11/2023]
WARNING: This page is about a different variant/trim than selected.

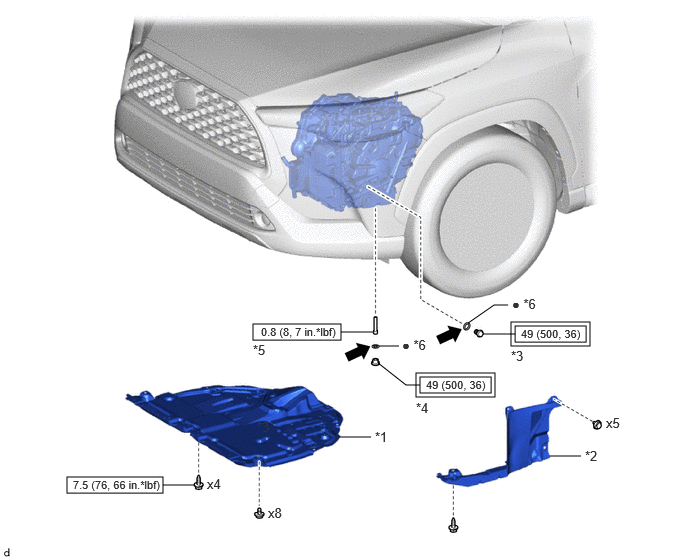

Fig 1: Continuously Variable Transaxle Fluid Replacement Components With Torque Specifications [09/2021 - 11/2023]
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | REAR ENGINE UNDER COVER LH |
| *3 | REFILL PLUG | *4 | OVERFLOW PLUG |
| *5 | OVERFLOW (CVT) TUBE | *6 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | Toyota Genuine CVT Fluid FE |
