Removal [09/2021 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2023]

  2. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

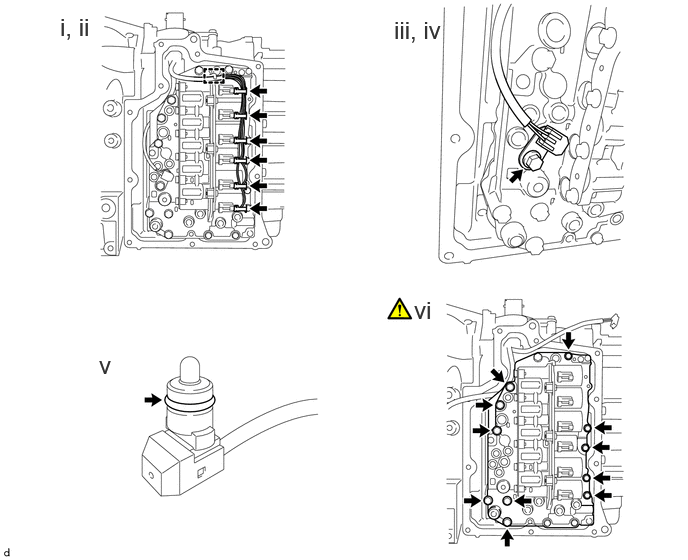

    1. GTY1034101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the clamp to disconnect the transmission wire from the solenoid lock plate.
      2. Disconnect the 6 solenoid valve connectors.
      3. Remove the bolt and temperature sensor clamp from the transmission valve body assembly.
      4. Disconnect the temperature sensor from the transmission valve body assembly.
      5. Remove the O-ring from the temperature sensor.
      6. Remove the 11 bolts and transmission valve body assembly from the transaxle case sub-assembly.

        Make sure the manual valve does not fall out when removing the transmission valve body assembly, as the manual valve is not secured to the transmission valve body assembly.

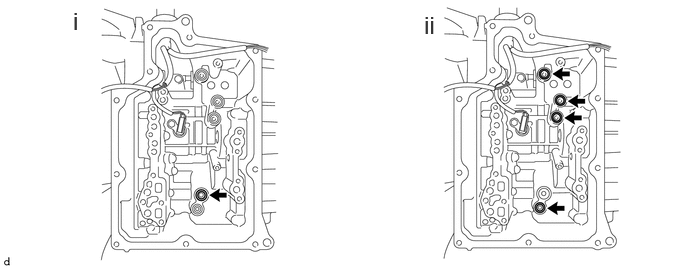

    2. GTY1034781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the front oil pump cover gasket from the transaxle case sub-assembly.
      2. Remove the 4 transaxle case gaskets from the transaxle case sub-assembly.
