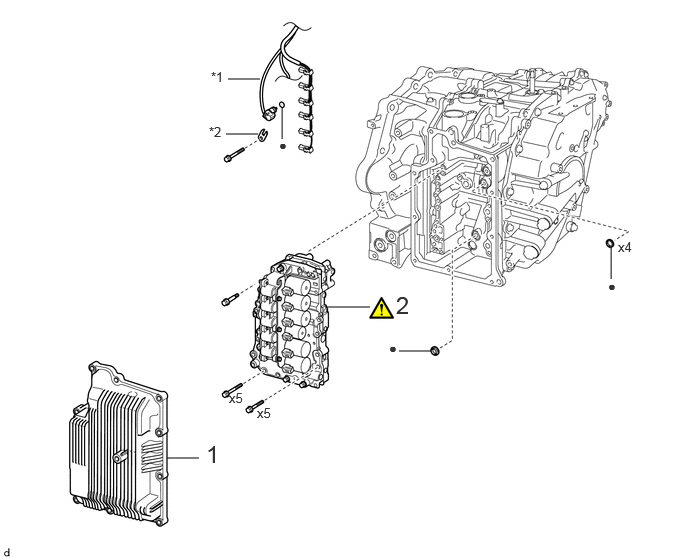

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TRANSAXLE SIDE COVER SUB-ASSEMBLY | 35015Y | - | - | - |
| 2 | TRANSMISSION VALVE BODY ASSEMBLY | 35410J | See step 2 | - | - |
| *1 | TRANSMISSION WIRE | *2 | TEMPERATURE SENSOR CLAMP |
| • | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the transmission valve body assembly removal/installation are shown below.
NECESSARY PROCEDURE AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Transmission valve body assembly |
|
Deterioration of fuel efficiency | Refer to INITIALIZATION [09/2021 - 11/2022] , or refer to INITIALIZATION [11/2022 - 11/2023] |
| CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | Refer to INITIALIZATION [09/2021 - 11/2022] , or refer to INITIALIZATION [11/2022 - 11/2023] |
| Bleed air from oil pump (continuously variable transaxle assembly) | Stop and start system | Refer to REGISTRATION [09/2021 - ] |
HINT:
Shift shock may increase after replacing the transmission valve body assembly. In this case, shift shock will reduce as the vehicle is driven.
