Removal [09/2021 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2023]

  2. REMOVE TRANSMISSION WIRE

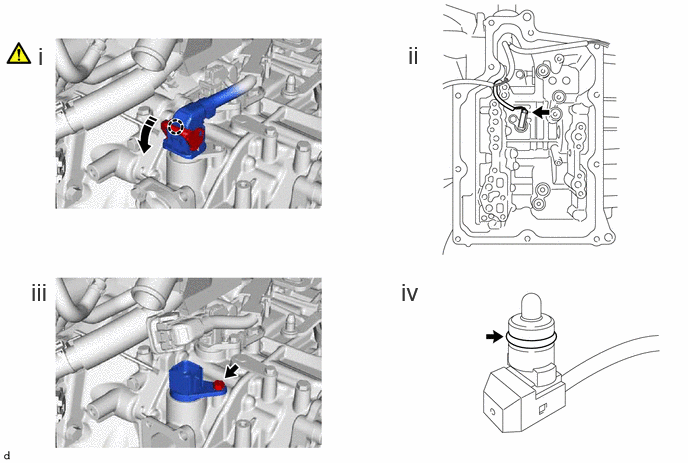

    1. GTY1035845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the claw, rotate the lever and disconnect the connector.
      2. Disconnect the connector.
      3. Remove the bolt and transmission wire from the transaxle case sub-assembly.
      4. Remove the O-ring from the temperature sensor.
