COMPONENTS (REMOVAL)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Procedure |
Part Name Code |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
 |

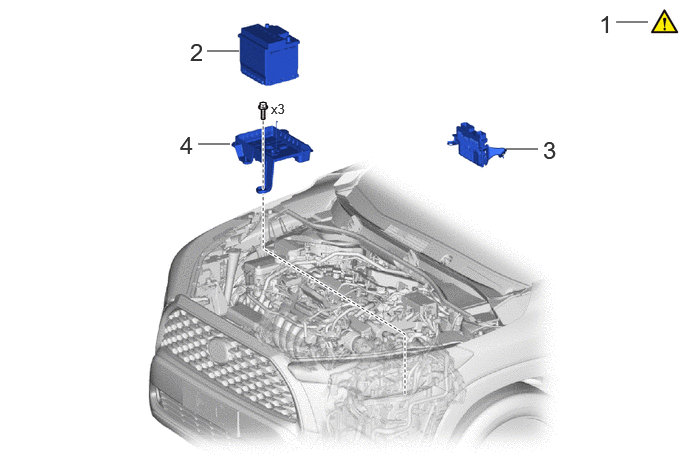

| 1 |
SECURE VEHICLE |
- |
See step 1 |
- |
- |
| 2 |
AUXILIARY BATTERY |
- |
- |
- |
- |
| 3 |
ECM |
89661 |
- |
- |
- |
| 4 |
BATTERY CLAMP SUB-ASSEMBLY |
74404A |
- |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Procedure |
Part Name Code |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
|
| 5 |
FRONT FLOOR CENTER BRACE |
57533B |
- |
- |
- |
| 6 |

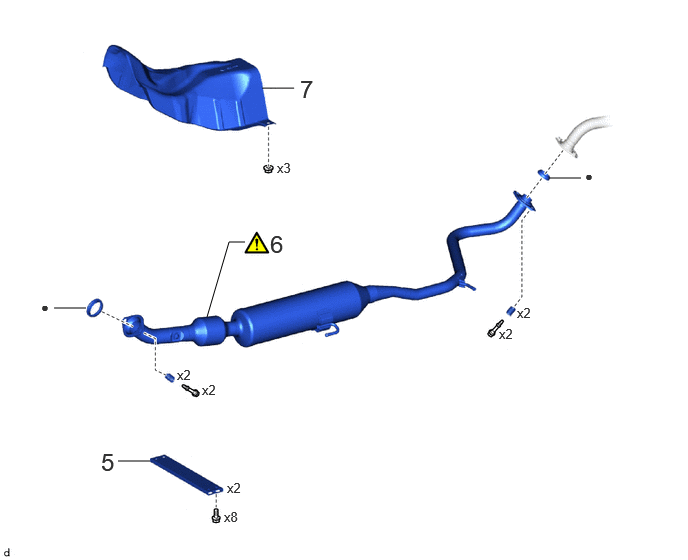

FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) |
17410 |
See step 6 |
- |
- |
| 7 |
FRONT NO. 1 FLOOR HEAT INSULATOR |
58151 |
- |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Procedure |
Part Name Code |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
|
| 8 |

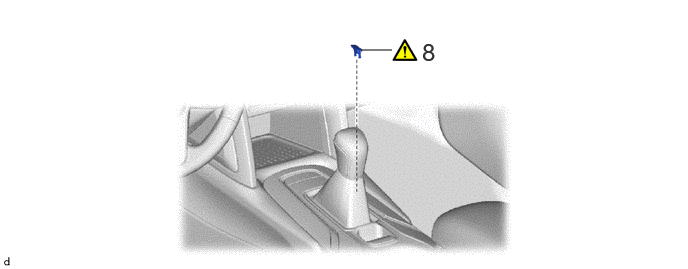

SHIFT LOCK RELEASE BUTTON COVER |
33554C |
See step 8 |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Procedure |
Part Name Code |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
|
| 9 |

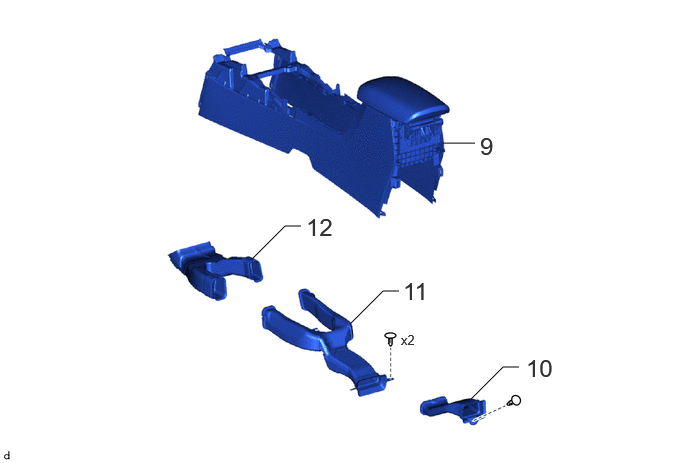

CONSOLE BOX ASSEMBLY |
58810J |
- |
- |
- |
| 10 |
NO. 3 CONSOLE BOX DUCT |
58863A |
- |
- |
- |
| 11 |
NO. 2 CONSOLE BOX DUCT |
58862B |
- |
- |
- |
| 12 |
NO. 1 CONSOLE BOX DUCT |
58861B |
- |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| Procedure |
Part Name Code |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
|
| 13 |
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side) |
33820B |
See step 13 |
- |
- |
| 14 |
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side) |
33820B |
See step 14 |
- |
- |
| 15 |
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY |
33820B |
- |
- |
- |
WARNING:
- When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Touching high-temperature areas such as the engine and exhaust pipe could result in burns.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
| Front camera system |
Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. |
Refer to INITIALIZATION [11/2022 - ] |
| Stop and start system |
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) |
Refer to PRECAUTION [11/2022 - 11/2023] |
- Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed |
Necessary Procedures |
Link |
| Power door lock control system
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. |
Refer to INITIALIZATION [11/2022 - ] |
| Power back door system |
Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed. |
Refer to INITIALIZATION [09/2021 - ] |
| Air conditioning system |
After the ignition switch is turned to ON, the servo motor standard position is recognized. |
- |
