Removal [09/2021 - 11/2022]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. SECURE VEHICLE
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  1
  2. REMOVE AUXILIARY BATTERY

    Refer to REMOVAL [09/2021 - 11/2022]

  3. REMOVE ECM

    Refer to REMOVAL [09/2021 - 11/2022]

  4. REMOVE BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18

  5. REMOVE FRONT FLOOR CENTER BRACE

    Refer to PROCEDURE - Step 1

  6. REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 Refer to PROCEDURE - Step 2

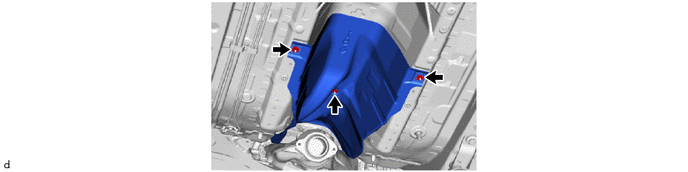

  7. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR
    1. GTY1034416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT LOCK RELEASE BUTTON COVER
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  2
  9. REMOVE CONSOLE BOX ASSEMBLY

    Refer to REMOVAL [09/2021 - 11/2022]

  10. REMOVE NO. 3 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 20

  11. REMOVE NO. 2 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 21

  12. REMOVE NO. 1 CONSOLE BOX DUCT

    Refer to PROCEDURE - Step 22

  13. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Shift Lever Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  8
  14. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY (Transaxle Side)
    GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    		 See step  5

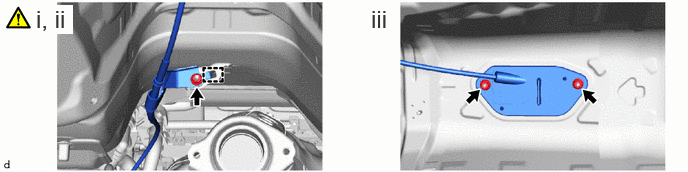

  15. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
    1. GTY1035460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the nut.
      2. Disengage the guide to separate the transmission control cable assembly from the vehicle body.
      3. Remove the 2 nuts and transmission control cable assembly from the vehicle body.
