COMPONENTS (REMOVAL)

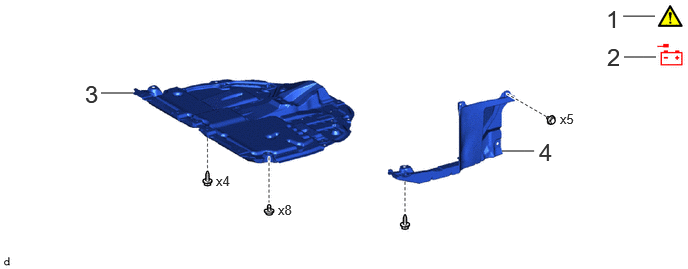

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | See step 1 | - | - |
| 2 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 3 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 4 | REAR ENGINE UNDER COVER LH | 51444A | - | - | - |

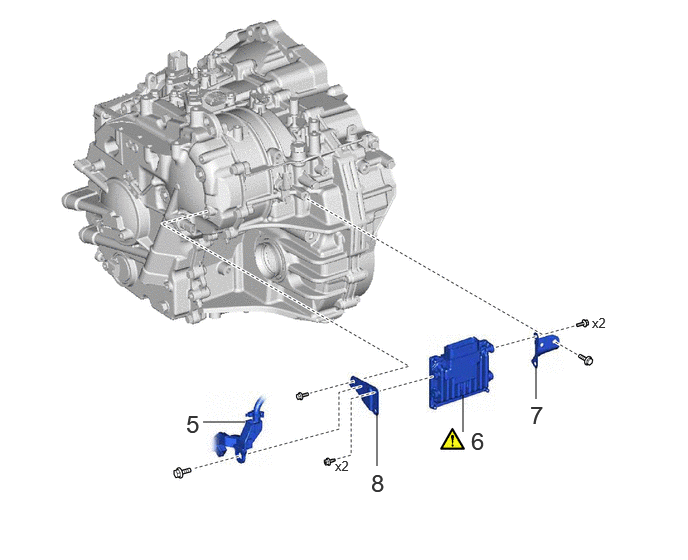

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | ENGINE WIRE | 82121 | - | - | - |
| 6 | TCM | 89535B | See step 6 | - | - |
| 7 | NO. 1 TRANSMISSION CONTROL ECU BRACKET | 89539M | - | - | - |
| 8 | NO. 2 TRANSMISSION CONTROL ECU BRACKET | 89539N | - | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the TCM removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| TCM | If possible, read the transaxle compensation code from the previous ECM:
|
Deterioration of fuel efficiency | for Initialization: Refer to INITIALIZATION [11/2022 - 11/2023] for Registration: Refer to REGISTRATION [09/2021 - 11/2023] |
If impossible, read the transaxle compensation code from the previous ECM:
|
|||
| Update ECU security key | Vehicle control history (RoB) are stored | Refer to UPDATE ECU SECURITY KEY [11/2022 - ] |
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [11/2022 - ] Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) Refer to PRECAUTION [11/2022 - 11/2023] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [11/2022 - ] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
