Removal [09/2021 - 11/2023]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

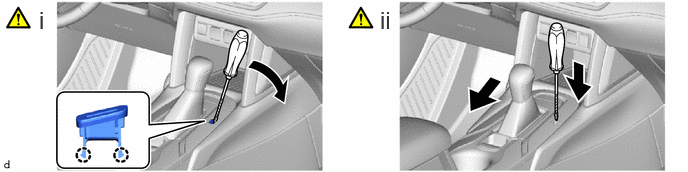

   1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the shift lock release button cover from the position indicator housing assembly.
      NOTE:

      Be careful not to damage the shift lock release button cover and position indicator housing assembly.

   2. Using a screwdriver with its tip wrapped with protective tape, push the shift lock release button to move the shift lever to N.
      NOTE:

      Be careful not to damage the transmission floor shift assembly.

Refer to REMOVAL [09/2021 - 11/2022] , or refer to REMOVAL [11/2022 - 11/2023]

Refer to PROCEDURE - Step 20 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 21 [11/2022 - ]

Refer to PROCEDURE - Step 21 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 22 [11/2022 - ]

Refer to PROCEDURE - Step 22 [09/2021 - 11/2022] , or refer to PROCEDURE - Step 23 [11/2022 - ]

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Stopper	*b	Nut
   *c	Turn approximately 180°	-	-

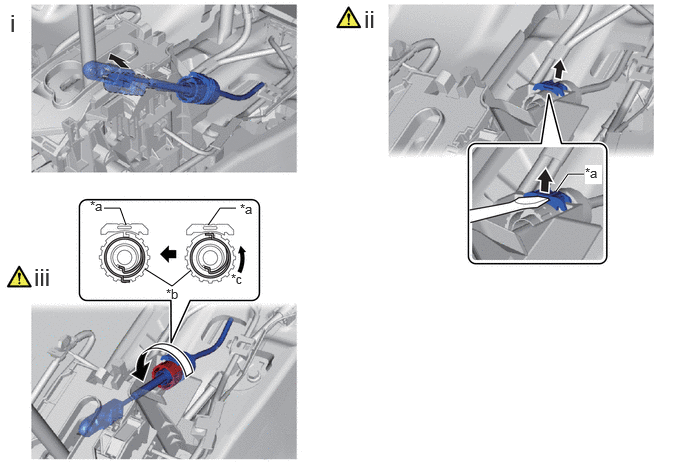

   1. Disconnect the end of the transmission control cable assembly from the transmission floor shift assembly.
   2. Using a screwdriver, pull out the stopper of the transmission control cable assembly.
      NOTE:

      Do not remove the stopper. If it is removed, reinstall it to its original position.

   3. Rotate the nut of the transmission control cable assembly approximately 180° counterclockwise and, while holding the nut in that position, disconnect the transmission control cable assembly from the transmission floor shift assembly.
      NOTE:

      • Do not turn the nut excessively as the internal spring may come off and the transmission control cable assembly will not be reusable.
      • Do not forcibly pull the transmission control select cable assembly into the cabin.

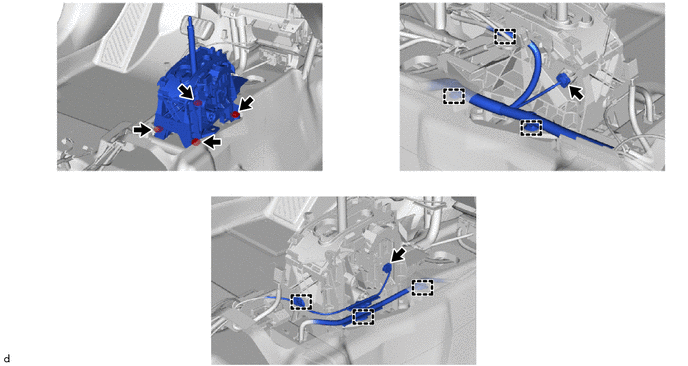

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
