COMPONENTS (REMOVAL)

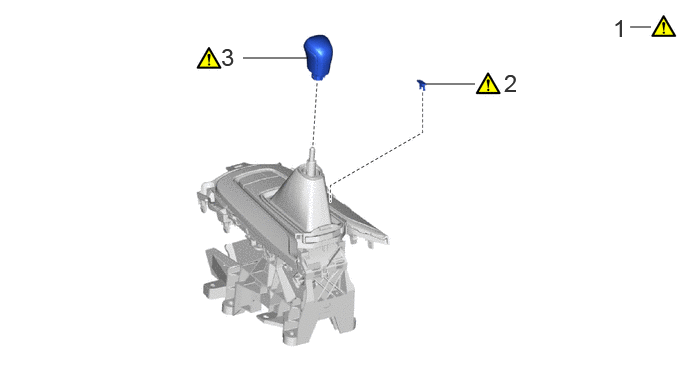

Fig 1: Shift Lever Removal Components [09/2021 - 11/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	SECURE VEHICLE	-	See step 1	-	-
2	SHIFT LOCK RELEASE BUTTON COVER	33554C	See step 2	-	-
3	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	See step 3	-	-

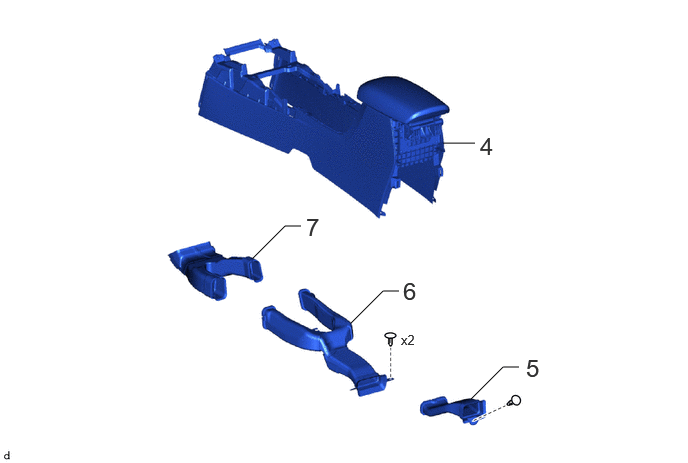

Fig 2: Shift Lever Removal Components [09/2021 - 11/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4	CONSOLE BOX ASSEMBLY	58810J	-	-	-
5	NO. 3 CONSOLE BOX DUCT	58863A	-	-	-
6	NO. 2 CONSOLE BOX DUCT	58862B	-	-	-
7	NO. 1 CONSOLE BOX DUCT	58861B	-	-	-

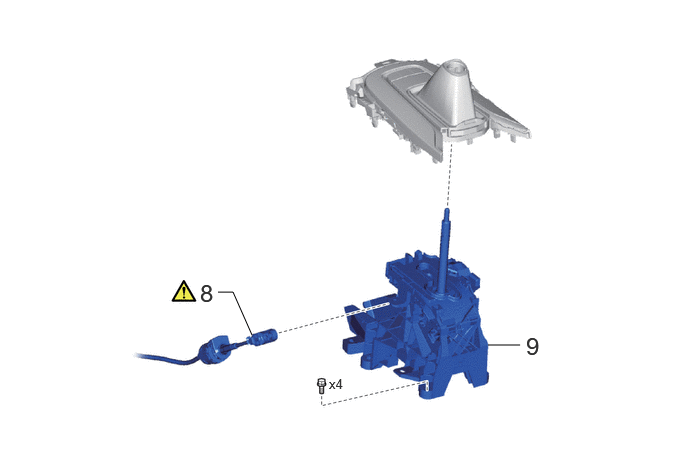

Fig 3: Shift Lever Removal Components [09/2021 - 11/2023] (3 Of 3)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8	TRANSMISSION CONTROL CABLE ASSEMBLY	33820B	See step 8	-	-
9	TRANSMISSION FLOOR SHIFT ASSEMBLY	-	-	-	-
