Reassembly [09/2021 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL SHIFT LEVER HOUSING BRACKET SUB-ASSEMBLY

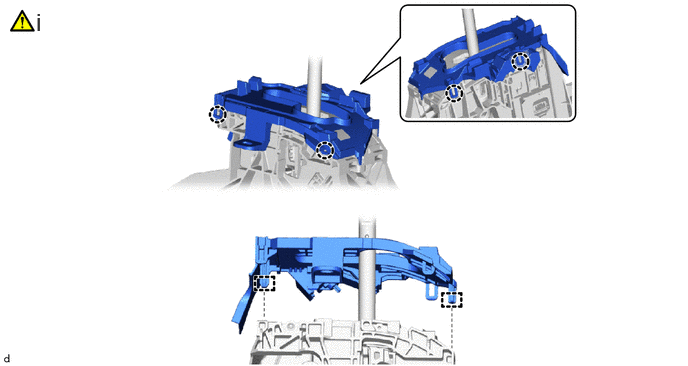

    1. GTY1034608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Engage the 4 claws and 2 guides to install the shift lever housing bracket sub-assembly to the shift lock control unit assembly.
        NOTE:

        Do not damage the shift lever housing bracket sub-assembly.
