Removal [09/2021 - 11/2023]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

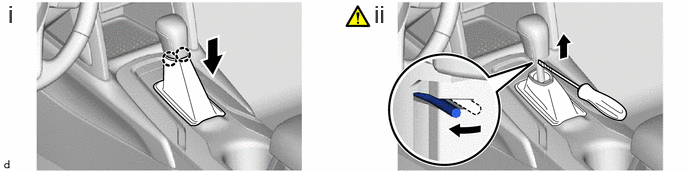

    1. GTY1033381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 2 claws to disconnect the shifting hole cover sub-assembly as shown in the illustration.
      2. Using a screwdriver with its tip wrapped with protective tape, expand the LH side clip and pull out the shift lever knob sub-assembly from the transmission floor shift assembly as shown in the illustration.
        NOTE:

        Be careful not to damage the shift lever knob sub-assembly.
