Section 4 (Automatic Transaxle System (K120) - Service Information (2 Of 2))
>>
Shift Lever Knob
>>
Removal [09/2021 - 11/2023]
>>
Caution / Notice / Hint
Caution / Notice / Hint
WARNING:
This page is about a different variant/trim than selected.

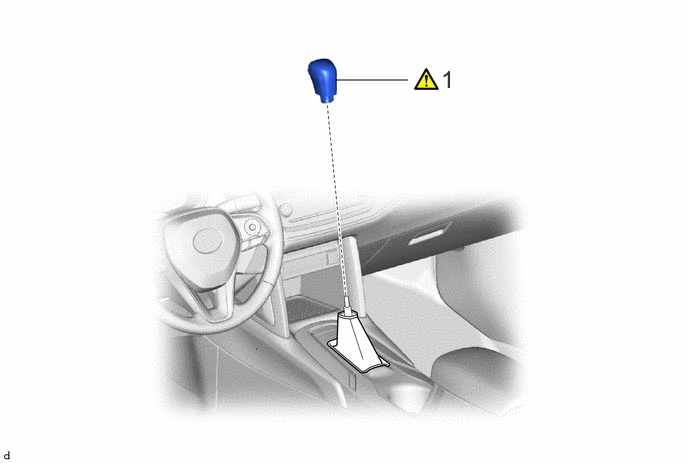

Fig 1: Shift Lever Knob Removal Components [09/2021 - 11/2023]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure
Part Name Code
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1
SHIFT LEVER KNOB SUB-ASSEMBLY
33504F
See step
1
-
-
