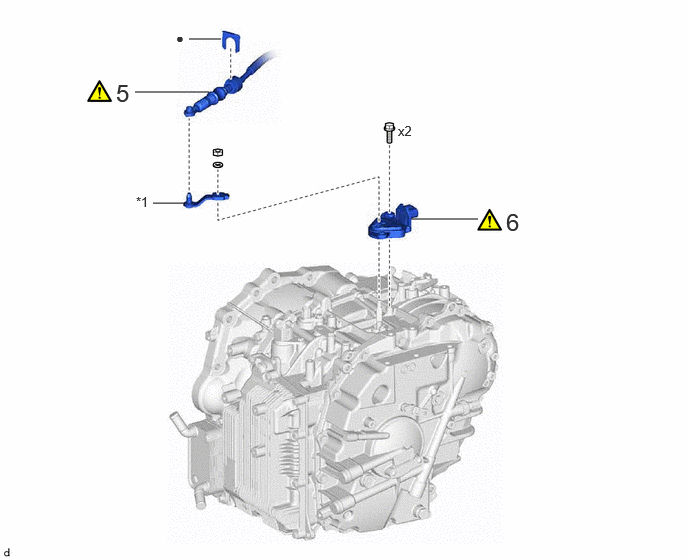

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | SECURE VEHICLE | - | See step 1 | - | - |
| 2 | AUXILIARY BATTERY | - | - | - | - |
| 3 | ECM | 89661 | - | - | - |
| 4 | BATTERY CLAMP SUB-ASSEMBLY | 74404A | - | - | - |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | TRANSMISSION CONTROL CABLE ASSEMBLY | 33820B | See step 5 | - | - |
| 6 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY | 84540 | See step 6 | - | - |
| *1 | TRANSMISSION CONTROL SHAFT LEVER | - | - |
| • | Non-reusable part | - | - |
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the park/neutral position switch assembly removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
| Auxiliary battery terminal is disconnected/reconnected | Memorize steering angle neutral point | Parking assist monitor system | Refer to INITIALIZATION [09/2021 - 11/2022] |
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
- Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. Refer to INITIALIZATION [09/2021 - 11/2022] Pre-collision system Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes) Refer to PRECAUTION [09/2021 - 11/2022] - Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power door lock control system - Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. Refer to INITIALIZATION [09/2021 - 11/2022] Power back door system Fully close the back door by hand.
HINT:
Initialization is not necessary if the above procedures are performed while the back door is closed.Refer to INITIALIZATION [09/2021 - ] Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
