Adjustment [11/2022 - 11/2023]: Procedure
WARNING: This page is about a different variant/trim than selected.
- SECURE VEHICLE
See step 1
- DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Refer to REMOVAL [11/2022 - 11/2023]
- ADJUST PARK/NEUTRAL POSITION SWITCH ASSEMBLY

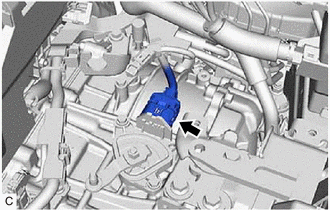

- Disconnect the park/neutral position switch assembly connector.
- Using a piece of wood or equivalent to secure the transmission control shaft lever to prevent it from rotating, remove the nut, washer and transmission control shaft lever from the manual valve lever shaft.NOTE:
If the transmission control shaft lever is not secured when loosening the nut, the manual valve link lever sub-assembly may separate from the manual valve.

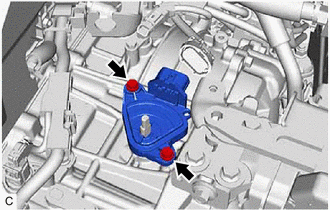

*1 Transmission Control Shaft Lever *a Manual Valve Link Lever Sub-assembly *b Manual Valve *a Piece of Wood or Equivalent - Loosen the 2 bolts of the park/neutral position switch assembly.
- Align the protrusions of the park/neutral position switch assembly as shown in the illustration.
*a Protrusion - Hold the park/neutral position switch assembly in that position and tighten the 2 bolts.
Torque: 5.4 N.m (55 kgf/cm, 48 in.lbf)
- Install the transmission control shaft lever to the manual valve lever shaft with the washer and nut.
Torque: 12.7 N.m (130 kgf/cm, 9 ft.lbf)
- Connect the park/neutral position switch assembly connector.
- Disconnect the park/neutral position switch assembly connector.
- CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
Refer to INSTALLATION [09/2021 - 11/2023]
- INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
