Parts Location [09/2021 - 11/2023]: Illustration

WARNING: This page is about a different variant/trim than selected.

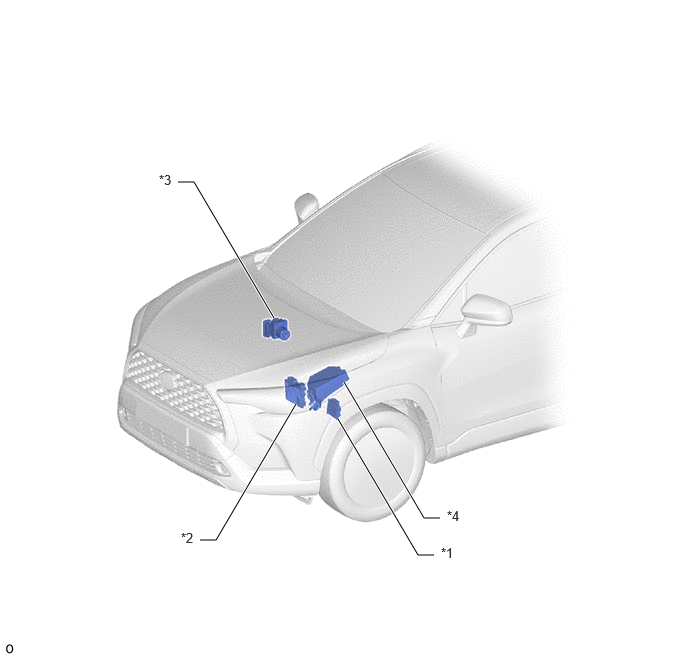

Fig 1: Continuously Variable Transaxle System Replacement Components (1 Of 5) [09/2021 - 11/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TCM	*2	ECM
*3	BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU	*4	NO. 1 ENGINE ROOM RELAY BLOCK ASSEMBLY

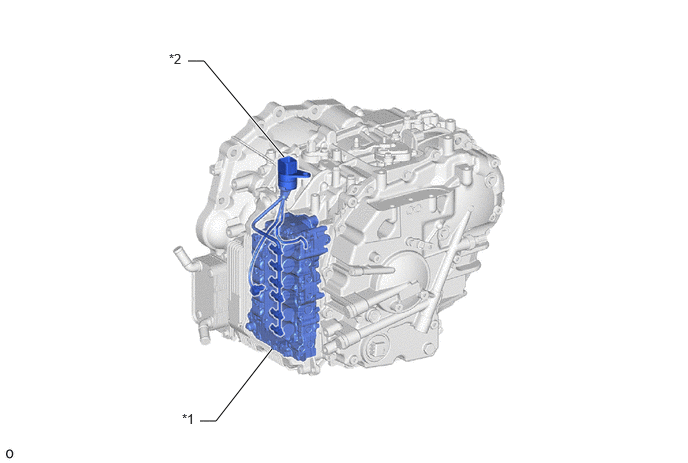

Fig 1: Continuously Variable Transaxle System Replacement Components (2 Of 5) [09/2021 - 11/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TRANSMISSION VALVE BODY ASSEMBLY
- SHIFT SOLENOID VALVE SLG
- SHIFT SOLENOID VALVE SL1
- SHIFT SOLENOID VALVE SL2
- SHIFT SOLENOID VALVE SLU
- SHIFT SOLENOID VALVE SLP
- SHIFT SOLENOID VALVE SLS

TRANSMISSION WIRE
- CVT FLUID TEMPERATURE SENSOR

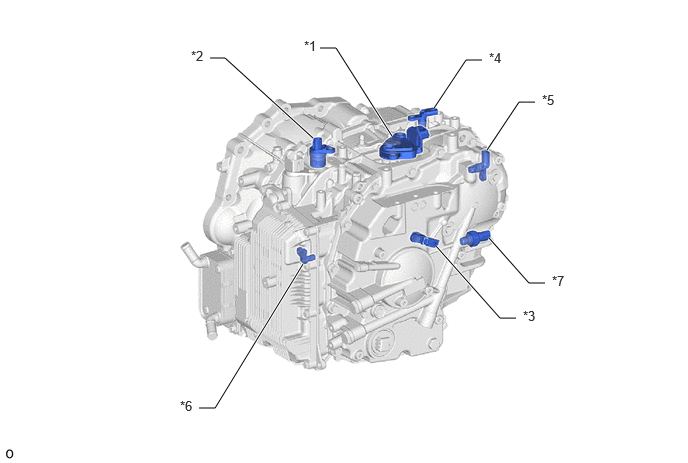

Fig 1: Continuously Variable Transaxle System Replacement Components (3 Of 5) [09/2021 - 11/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	PARK/NEUTRAL POSITION SWITCH ASSEMBLY	*2	SHIFT STROKE SENSOR
*3	TRANSMISSION REVOLUTION SENSOR (NT)	*4	TRANSMISSION REVOLUTION SENSOR (NOUT)
*5	TRANSMISSION REVOLUTION SENSOR (NSS)	*6	TRANSMISSION REVOLUTION SENSOR (NC1)
*7	OIL PRESSURE SENSOR	-	-

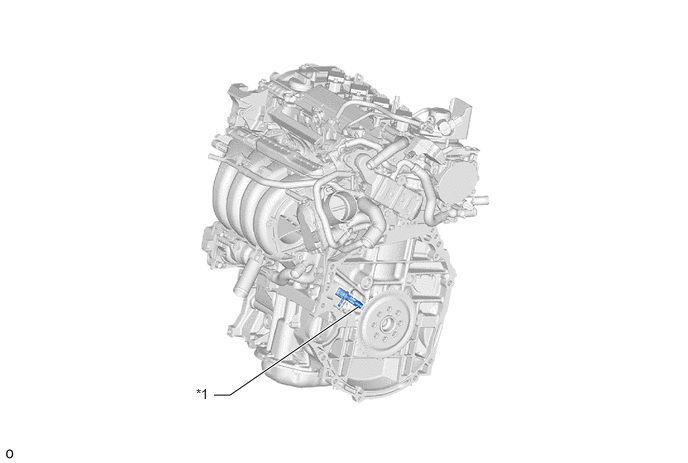

Fig 1: Continuously Variable Transaxle System Replacement Components (4 Of 5) [09/2021 - 11/2023]

CRANKSHAFT POSITION SENSOR

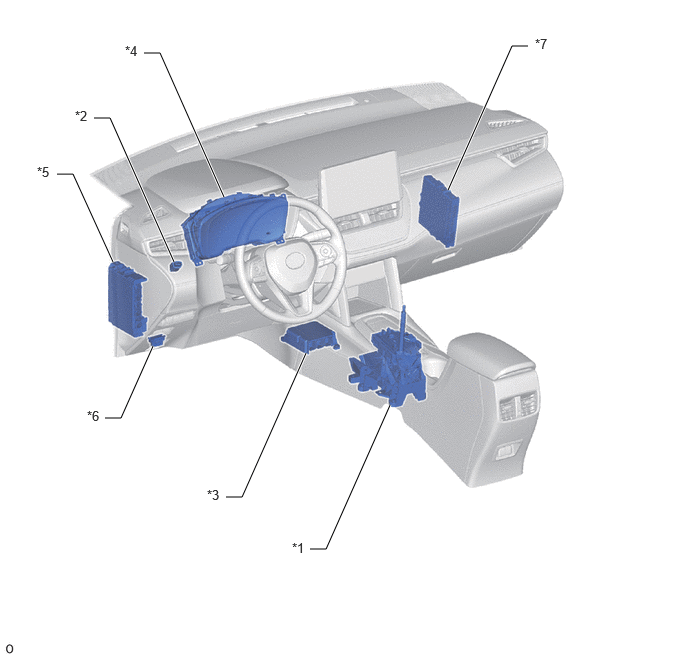

Fig 1: Continuously Variable Transaxle System Replacement Components (5 Of 5) [09/2021 - 11/2023]

*1	SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH	*2	STOP LIGHT SWITCH ASSEMBLY
*3	AIRBAG ECU ASSEMBLY - YAW RATE AND ACCELERATION SENSOR	*4	COMBINATION METER ASSEMBLY
*5	POWER DISTRIBUTION BOX ASSEMBLY	*6	DLC3
*7	ENGINE STOP AND START ECU	-	-
