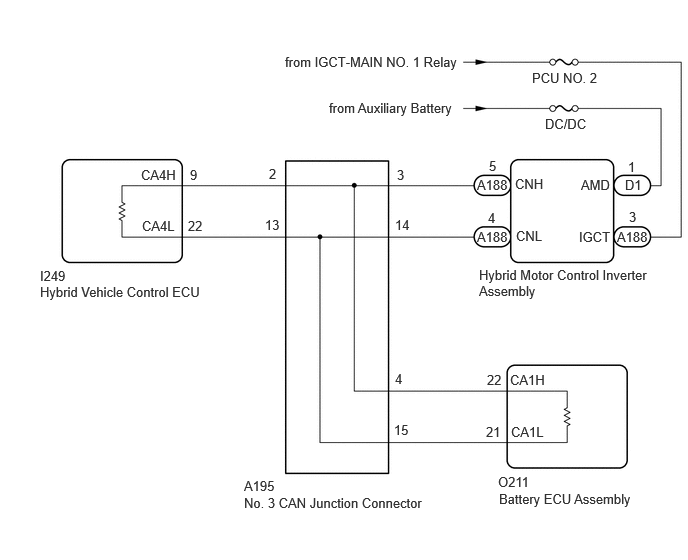

DTC U0111-87: Lost Communication with Hybrid/EV Battery Energy Control Module "A" Missing Message; DTC U01BD-87: Lost Communication with DC/DC Converter Control Module "C" Missing Message; DTC U1150-87: Lost Communication with Hybrid Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message; DTC U117B-87: Lost Communication with Hybrid/EV Battery Energy Control Module "A" (ch2) Missing Message [11/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
GTY1114082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
