Parts Location [11/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

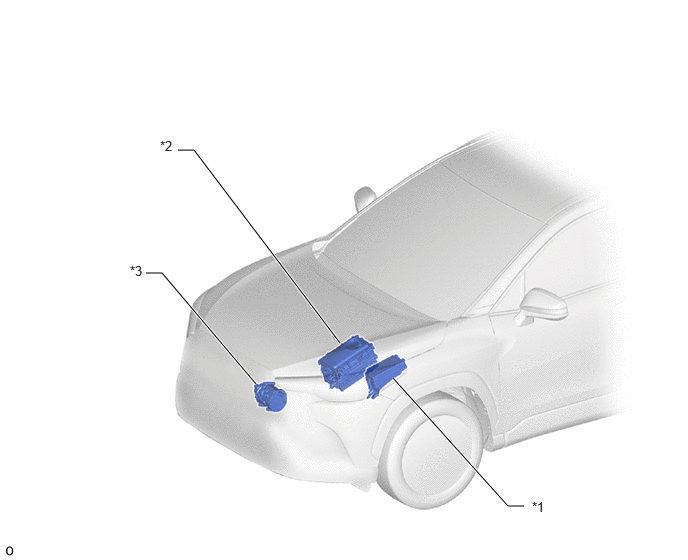

GTY1108326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE ROOM RELAY BLOCK
- IGCT-MAIN NO. 1 RELAY		 *2 INVERTER WITH CONVERTER ASSEMBLY
*3 COMPRESSOR WITH MOTOR ASSEMBLY - -

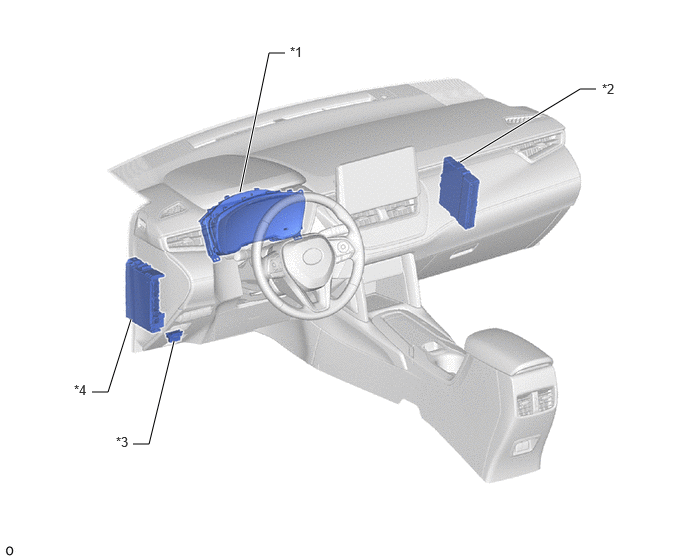

GTY1111274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COMBINATION METER ASSEMBLY *2 HYBRID VEHICLE CONTROL ECU
*3 DLC3 *4 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
- ECU-B NO. 2

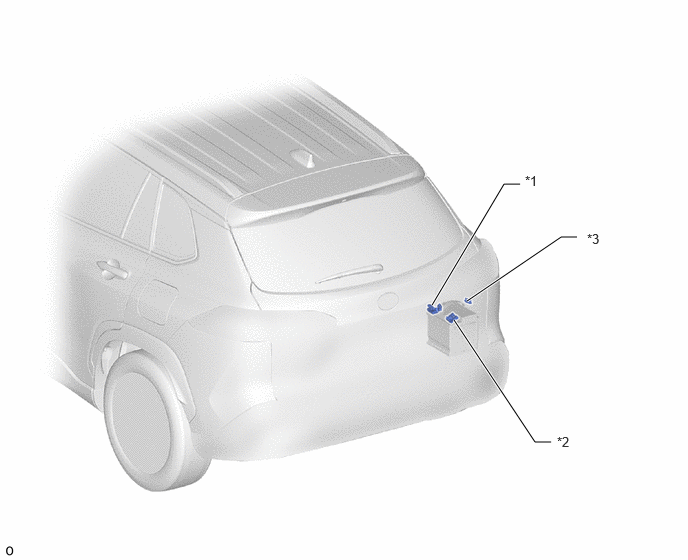

GTY1103918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 BATTERY STATE SENSOR ASSEMBLY *2 FUSIBLE LINK BLOCK ASSEMBLY
- R/B-B RR FUSE
*3 FUSE BLOCK ASSEMBLY
- BATT-S FUSE		 - -
