Terminals Of Ecu [11/2023 - 12/2024]

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
Refer to BEFORE DISCONNECTING BATTERY [11/2023 - ]
When disconnecting and reconnecting the auxiliary battery.
HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [11/2022 - ]
Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.
This information describes the standard values for all CAN related components.

HINT:

The systems (ECUs and sensors) that use CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed to the vehicle.
Refer to SYSTEM DIAGRAM [11/2023 - ]
Operating the ignition switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.
Even after DTCs are cleared, if a DTC is stored again after driving the vehicle for a while, the malfunction may be occurring due to vibration of the vehicle. In such a case, wiggling the ECUs or wire harness while performing the inspection below may help determine the cause of the malfunction.

NO. 9 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 9 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 9 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 9 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
A193-1 (CANH)	B	Brake actuator assembly (for Chassis Local Bus)
A193-12 (CANL)	W	Brake actuator assembly (for Chassis Local Bus)
A193-2 (CANH)	L	ECM (for Chassis Local Bus)
A193-13 (CANL)	W	ECM (for Chassis Local Bus)
A193-3 (CANH)	R	Engine stop and start ECU (for Chassis Local Bus)
A193-14 (CANL)	W	Engine stop and start ECU (for Chassis Local Bus)
A193-9 (CANH)	G	Central gateway ECU (network gateway ECU) (for Bus 4)
A193-20 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 4)
A193-10 (CANH)	B	Brake actuator assembly (for Bus 4)
A193-21 (CANL)	W	Brake actuator assembly (for Bus 4)
A193-11 (CANH)	P	No. 11 global CAN junction connector (for Bus 4)
A193-22 (CANL)	W	No. 11 global CAN junction connector (for Bus 4)

NO. 11 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 11 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 11 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 11 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
I264-1 (CANH)	R	Airbag ECU assembly (for Bus 4)
I264-8 (CANL)	W	Airbag ECU assembly (for Bus 4)
I264-3 (CANH)	B	No. 9 global CAN junction connector (for Bus 4)
I264-10 (CANL)	W	No. 9 global CAN junction connector (for Bus 4)
I264-5 (CANH)	BE	Steering sensor (for Bus 4)
I264-12 (CANL)	W	Steering sensor (for Bus 4)
I264-7 (CANH)	G	Power steering ECU assembly (for Bus 4)
I264-14 (CANL)	W	Power steering ECU assembly (for Bus 4)

NO. 13 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 13 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 13 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 13 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
I263-7 (CANH)	R	Certification ECU (smart key ECU assembly)*1 (for Bus 5)
I263-18 (CANL)	W	Certification ECU (smart key ECU assembly)*1 (for Bus 5)
I263-8 (CANH)	BE	Air conditioning amplifier assembly (for Bus 5)
I263-19 (CANL)	W	Air conditioning amplifier assembly (for Bus 5)
I263-10 (CANH)	B	No. 16 global CAN junction connector (for Bus 5)
I263-21 (CANL)	W	No. 16 global CAN junction connector (for Bus 5)
I263-11 (CANH)	B	No. 20 global CAN junction connector*2 (for Bus 5)
I263-22 (CANL)	W	No. 20 global CAN junction connector*2 (for Bus 5)
I263-11 (CANH)	B	Central gateway ECU (network gateway ECU)*3 (for Bus 5)
I263-22 (CANL)	W	Central gateway ECU (network gateway ECU)*3 (for Bus 5)

*1: w/ Smart Key System
*2: w/ AFS
*3: w/o AFS

NO. 14 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 14 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 14 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 14 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
I266-1 (CANH)	LG	Clearance warning ECU assembly*1 (for Bus 1)
I266-12 (CANL)	W	Clearance warning ECU assembly*1 (for Bus 1)
I266-2 (CANH)	B	Forward recognition camera (for Bus 1)
I266-13 (CANL)	W	Forward recognition camera (for Bus 1)
I266-3 (CANH)	SB	Central gateway ECU (network gateway ECU) (for Bus 1)
I266-14 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 1)

*1: w/ Intuitive Parking Assist System

NO. 15 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 15 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 15 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 15 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
I291-1 (CANH)	L	Radio and display receiver assembly (for Bus 3)
I291-12 (CANL)	W	Radio and display receiver assembly (for Bus 3)
I291-2 (CANH)	GR	DCM (telematics transceiver)*1 (for Bus 3)
I291-13 (CANL)	W	DCM (telematics transceiver)*1 (for Bus 3)
I291-3 (CANH)	G	Central gateway ECU (network gateway ECU) (for Bus 3)
I291-14 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 3)
I291-4 (CANH)	V	Combination meter assembly (for Bus 3)
I291-15 (CANL)	W	Combination meter assembly (for Bus 3)

*1: w/ Telematics Transceiver

NO. 16 GLOBAL CAN JUNCTION CONNECTOR (w/ Power Back Door)

Check the No. 16 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 16 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 16 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
O229-1 (CANH)	B	No. 13 global CAN junction connector (for Bus 5)
O229-8 (CANL)	W	No. 13 global CAN junction connector (for Bus 5)
O229-3 (CANH)	B	Main body ECU (multiplex network body ECU) (for Bus 5)
O229-10 (CANL)	W	Main body ECU (multiplex network body ECU) (for Bus 5)
O229-5 (CANH)	V	Multiplex network door ECU (for Bus 5)
O229-12 (CANL)	W	Multiplex network door ECU (for Bus 5)

NO. 16 GLOBAL CAN JUNCTION CONNECTOR (w/o Power Back Door)

Check the No. 16 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 16 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 16 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
O233-1 (CANH)	B	No. 13 global CAN junction connector (for Bus 5)
O233-12 (CANL)	W	No. 13 global CAN junction connector (for Bus 5)
O233-2 (CANH)	B	Main body ECU (multiplex network body ECU) (for Bus 5)
O233-13 (CANL)	W	Main body ECU (multiplex network body ECU) (for Bus 5)

NO. 17 GLOBAL CAN JUNCTION CONNECTOR (w/ Parking Assist Monitor System)

Check the No. 17 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 17 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 17 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
O228-1 (CANH)	BE	Millimeter wave radar sensor assembly (for Bus 1)
O228-8 (CANL)	W	Millimeter wave radar sensor assembly (for Bus 1)
O228-5 (CANH)	R	Blind spot monitor sensor LH (B)*1 (for Bus 1)
O228-12 (CANL)	W	Blind spot monitor sensor LH (B)*1 (for Bus 1)
O228-7 (CANH)	B	No. 18 global CAN junction connector (for Bus 1)
O228-14 (CANL)	W	No. 18 global CAN junction connector (for Bus 1)

*1: w/ Blind Spot Monitor System

NO. 17 GLOBAL CAN JUNCTION CONNECTOR (w/o Parking Assist Monitor System)

Check the No. 17 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 17 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 17 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
O228-1 (CANH)	BE	Millimeter wave radar sensor assembly (for Bus 1)
O228-8 (CANL)	W	Millimeter wave radar sensor assembly (for Bus 1)
O228-5 (CANH)	R	Blind spot monitor sensor LH (B)*1 (for Bus 1)
O228-12 (CANL)	W	Blind spot monitor sensor LH (B)*1 (for Bus 1)
O228-3 (CANH)	R	No. 2 CAN junction terminal (for Bus 1)
O228-10 (CANL)	W	No. 2 CAN junction terminal (for Bus 1)

*1: w/ Blind Spot Monitor System

NO. 18 GLOBAL CAN JUNCTION CONNECTOR (w/ Parking Assist Monitor System)

Check the No. 18 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 18 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 18 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
U47-1 (CANH)	L	Rear television camera assembly (for Bus 1)
U47-12 (CANL)	W	Rear television camera assembly (for Bus 1)
U47-2 (CANH)	R	No. 2 CAN junction terminal (for Bus 1)
U47-13 (CANL)	W	No. 2 CAN junction terminal (for Bus 1)
U47-3 (CANH)	B	No. 17 global CAN junction connector (for Bus 1)
U47-14 (CANL)	W	No. 17 global CAN junction connector (for Bus 1)

NO. 20 GLOBAL CAN JUNCTION CONNECTOR (w/ AFS)

Check the No. 20 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 20 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 20 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
A197-1 (CANH)	G	Headlight ECU sub-assembly LH (for Bus 5)
A197-5 (CANL)	W	Headlight ECU sub-assembly LH (for Bus 5)
A197-2 (CANH)	V	Headlight ECU sub-assembly RH (for Bus 5)
A197-6 (CANL)	W	Headlight ECU sub-assembly RH (for Bus 5)
A197-3 (CANH)	B	No. 13 global CAN junction connector (for Bus 5)
A197-7 (CANL)	W	No. 13 global CAN junction connector (for Bus 5)
A197-4 (CANH)	P	Central gateway ECU (network gateway ECU) (for Bus 5)
A197-8 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 5)

NO. 21 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 21 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 21 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 21 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
I265-2 (CANH)	R	ECM (for Bus 2)
I265-13 (CANL)	W	ECM (for Bus 2)
I265-3 (CANH)	L	Engine stop and start ECU (for Bus 2)
I265-14 (CANL)	SB	Engine stop and start ECU (for Bus 2)
I265-4 (CANH)	P	Central gateway ECU (network gateway ECU) (for Bus 2)
I265-15 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 2)

NO. 22 GLOBAL CAN JUNCTION CONNECTOR

Check the No. 22 global CAN junction connector.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to No. 22 Global CAN Junction Connector)

Check the connection diagram of the components which are connected to the No. 22 global CAN junction connector.

Terminal No. (Symbol)	Wiring Color	Connected to
O227-7 (CANH)	P	4WD ECU assembly*1 (for Bus 6)
O227-18 (CANL)	W	4WD ECU assembly*1 (for Bus 6)
O227-8 (CANH)	R	Central gateway ECU (network gateway ECU) (for Bus 6)
O227-19 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 6)
O227-9 (CANH)	LG	Central gateway ECU (network gateway ECU) (for Bus 6)
O227-20 (CANL)	W	Central gateway ECU (network gateway ECU) (for Bus 6)
O227-10 (CANH)	P	Tire pressure warning ECU and receiver (for Bus 6)
O227-21 (CANL)	W	Tire pressure warning ECU and receiver (for Bus 6)

*1: for AWD

NO. 2 CAN JUNCTION TERMINAL (w/ Parking Assist Monitor System)

Check the No. 2 CAN junction terminal.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear view of wire harness connector
(to No. 2 CAN Junction Terminal)

Check the connection diagram of the components which are connected to the No. 2 CAN junction terminal.

Terminal No. (Symbol)	Wiring Color	Connected to
O224-3 (CANH)	R	No. 18 global CAN junction connector (for Bus 1)
O224-2 (CANL)	W	No. 18 global CAN junction connector (for Bus 1)

NO. 2 CAN JUNCTION TERMINAL (w/o Parking Assist Monitor System)

Check the No. 2 CAN junction terminal.

Connection diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Rear view of wire harness connector
(to No. 2 CAN Junction Terminal)

Check the connection diagram of the components which are connected to the No. 2 CAN junction terminal.

Terminal No. (Symbol)	Wiring Color	Connected to
O224-3 (CANH)	R	No. 17 global CAN junction connector (for Bus 1)
O224-2 (CANL)	W	No. 17 global CAN junction connector (for Bus 1)

DLC3

Disconnect the cable from the negative (-) auxiliary battery terminal.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DLC3

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I26-6 (CANH) - I26-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I26-6 (CANH) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I26-14 (CANL) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I26-6 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I26-14 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected
(Central Gateway ECU (Network Gateway ECU))

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I231 central gateway ECU (network gateway ECU) connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to Central Gateway ECU (Network Gateway ECU))

Standard Resistance

DIAGNOSIS BUS BRANCH LINES (DLC3 - CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU))

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-16 (CA6H) - I231-17 (CA6L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	1 MΩ or higher
I231-16 (CA6H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-17 (CA6L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-16 (CA6H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-17 (CA6L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 1 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-28 (CA1H) - I231-27 (CA1L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-28 (CA1H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-27 (CA1L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-28 (CA1H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-27 (CA1L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 2 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-26 (CA4H) - I231-25 (CA4L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-26 (CA4H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-25 (CA4L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-26 (CA4H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-25 (CA4L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 3 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-30 (CA3H) - I231-29 (CA3L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-30 (CA3H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-29 (CA3L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-30 (CA3H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-29 (CA3L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 4 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-24 (CA2H) - I231-23 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-24 (CA2H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-23 (CA2L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-24 (CA2H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-23 (CA2L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 5 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-7 (CA5H) - I231-8 (CA5L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-7 (CA5H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-8 (CA5L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-7 (CA5H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-8 (CA5L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 6 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-31 (CA7H) - I231-10 (CAVH)	HIGH-level CAN bus line - HIGH-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω
I231-32 (CA7L) - I231-11 (CAVL)	LOW-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω
I231-31 (CA7H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-32 (CA7L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-31 (CA7H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-32 (CA7L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BUS 7 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I231-5 (CA8H) - I231-6 (CA8L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I231-5 (CA8H) - I231-22 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-6 (CA8L) - I231-22 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I231-5 (CA8H) - I231-1 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I231-6 (CA8L) - I231-1 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

STEERING SENSOR

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Component without harness connected
(Steering Sensor)

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I229 steering sensor connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Steering Sensor)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I229-3 (CANH) - I229-8 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I229-3 (CANH) - I229-6 (ESS)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I229-8 (CANL) - I229-6 (ESS)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I229-3 (CANH) - I229-4 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I229-8 (CANL) - I229-4 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

ECM

Refer to Terminals of ECU.

Refer to TERMINALS OF ECM [11/2023 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the A199 ECM connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

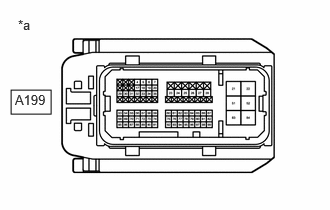

*a	Front view of wire harness connector (to ECM)

Standard Resistance

BUS 2 MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A199-4 (CANH) - A199-5 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
A199-4 (CANH) - A199-22 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A199-5 (CANL) - A199-22 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A199-4 (CANH) - A199-31 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A199-5 (CANL) - A199-31 (BATT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A199-6 (CACH) - A199-7 (CACL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
A199-6 (CACH) - A199-22 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A199-7 (CACL) - A199-22 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A199-6 (CACH) - A199-31 (BATT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A199-7 (CACL) - A199-31 (E1)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

COMBINATION METER ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - 12/2024]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I4 and I5 combination meter assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

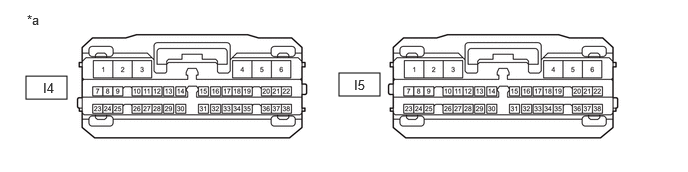

Front view of wire harness connector
(to Combination Meter Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I5-31 (CANH) - I5-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I5-31 (CANH) - I4-2 (ES)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I5-14 (CANL) - I4-2 (ES)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I5-31 (CANH) - I4-5 (B)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I5-14 (CANL) - I4-5 (B)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BRAKE ACTUATOR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the A151 brake actuator assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

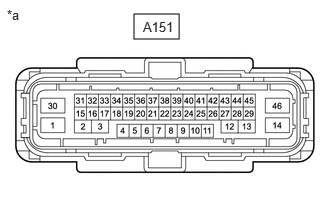

*a	Front view of wire harness connector (to Brake Actuator Assembly)

Standard Resistance

BUS 4 BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A151-5 (CANH) - A151-19 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
A151-5 (CANH) - A151-46 (GND1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A151-19 (CANL) - A151-46 (GND1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A151-5 (CANH) - A151-30 (+BS)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A151-19 (CANL) - A151-30 (+BS)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS MAIN LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A151-11 (CA2H) - A151-25 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
A151-11 (CA2H) - A151-46 (GND1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A151-25 (CA2L) - A151-46 (GND1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A151-11 (CA2H) - A151-30 (+BS)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A151-25 (CA2L) - A151-30 (+BS)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I85 main body ECU (multiplex network body ECU) connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Main Body ECU (Multiplex Network Body ECU))	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I85-2 (CANH) - I85-1 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I85-2 (CANH) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I85-1 (CANL) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I85-2 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I85-1 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I222 certification ECU (smart key ECU assembly) connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I222-1 (CANH) - I222-2 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I222-1 (CANH) - I222-29 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I222-2 (CANL) - I222-29 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I222-1 (CANH) - I222-6 (+B)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I222-2 (CANL) - I222-6 (+B)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Certification ECU (Smart Key ECU Assembly))

POWER STEERING ECU ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I21 and I42 power steering ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front view of wire harness connector
(to Power Steering ECU Assembly)

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I21-7 (CANH) - I21-8 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132 Ω
I21-7 (CANH) - I42-2 (PGND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I21-8 (CANL) - I42-2 (PGND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I21-7 (CANH) - I42-1 (PIG)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I21-8 (CANL) - I42-1 (PIG)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

AIRBAG ECU ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - 12/2024]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I47 airbag ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

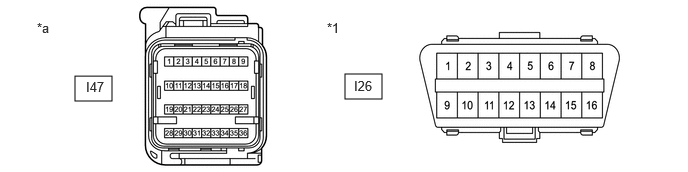

*a	Front view of wire harness connector (to Airbag ECU Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I47-26 (CANH) - I47-27 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I47-26 (CANH) - I47-33 (E1)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I47-27 (CANL) - I47-33 (E1)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I47-26 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I47-27 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

AIR CONDITIONING AMPLIFIER ASSEMBLY

Refer to Terminals of ECU.

for Automatic Air Conditioning System: Refer to TERMINALS OF ECU [11/2022 - ]
for Manual Air Conditioning System: Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I49 air conditioning amplifier assembly connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I49-2 (CANH) - I49-1 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I49-2 (CANH) - I49-17 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I49-1 (CANL) - I49-17 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I49-2 (CANH) - I49-5 (B)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I49-1 (CANL) - I49-5 (B)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Front view of wire harness connector (to Air Conditioning Amplifier Assembly)

RADIO AND DISPLAY RECEIVER ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I253 radio and display receiver assembly connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-

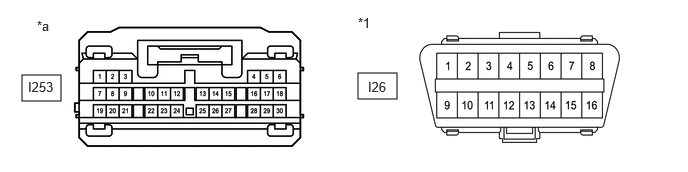

*a	Front view of wire harness connector (to Radio and Display Receiver Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I253-13 (CANH) - I253-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I253-13 (CANH) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I253-14 (CANL) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I253-13 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I253-14 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

BLIND SPOT MONITOR SENSOR LH (B) (w/ Blind Spot Monitor System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the S12 blind spot monitor sensor LH (B) connector.

Measure the resistance according to the value(s) in the table below.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	DLC3	-	-
*a	Front view of wire harness connector (to Blind Spot Monitor Sensor LH (B))	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
S12-2 (CA1P) - S12-7 (CA1N)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
S12-2 (CA1P) - S12-10 (BLGD)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
S12-7 (CA1N) - S12-10 (BLGD)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
S12-2 (CA1P) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
S12-7 (CA1N) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FORWARD RECOGNITION CAMERA

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the T32 forward recognition camera connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Forward Recognition Camera)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
T32-2 (CA2P) - T32-1 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132Ω
T32-2 (CA2P) - T32-13 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
T32-1 (CA2L) - T32-13 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
T32-2 (CA2P) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
T32-1 (CA2L) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
T32-10 (CA1P) - T32-9 (CA1N)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132Ω
T32-10 (CA1P) - T32-13 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
T32-9 (CA1N) - T32-13 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
T32-10 (CA1P) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
T32-9 (CA1N) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

MILLIMETER WAVE RADAR SENSOR ASSEMBLY

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the A174 millimeter wave radar sensor assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Millimeter Wave Radar Sensor Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A174-10 (CA3H) - A174-9 (CA3L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132Ω
A174-10 (CA3H) - A174-5 (SGND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A174-9 (CA3L) - A174-5 (SGND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A174-10 (CA3H) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A174-9 (CA3L) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A174-4 (CA2H) - A174-3 (CA2L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	108 to 132Ω
A174-4 (CA2H) - A174-5 (SGND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A174-3 (CA2L) - A174-5 (SGND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A174-4 (CA2H) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A174-3 (CA2L) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

REAR TELEVISION CAMERA ASSEMBLY (w/ Parking Assist Monitor System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the U48 rear television camera assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Rear Television Camera Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
U48-1 (CANH) - U48-2 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
U48-1 (CANH) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
U48-2 (CANL) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
U48-1 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
U48-2 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

4WD ECU ASSEMBLY (for AWD)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [09/2021 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the O201 4WD ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-

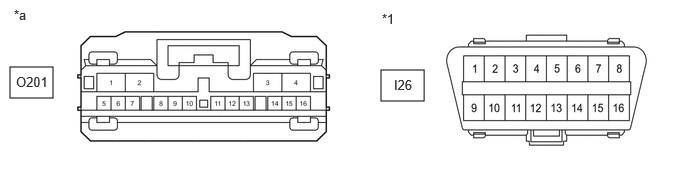

*a	Front view of wire harness connector (to 4WD ECU Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
O201-6 (CANH) - O201-5 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
O201-6 (CANH) - O201-4 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O201-5 (CANL) - O201-4 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O201-6 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
O201-5 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

TIRE PRESSURE WARNING ECU AND RECEIVER (w/ Smart Key System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the O209 tire pressure warning ECU and receiver connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Tire Pressure Warning ECU and Receiver)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
O209-9 (CANH) - O209-10 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
O209-9 (CANH) - O209-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O209-10 (CANL) - O209-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O209-9 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
O209-10 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

TIRE PRESSURE WARNING ECU AND RECEIVER (w/o Smart Key System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the O221 tire pressure warning ECU and receiver connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Tire Pressure Warning ECU and Receiver)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
O221-9 (CANH) - O221-10 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
O221-9 (CANH) - O221-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O221-10 (CANL) - O221-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
O221-9 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
O221-10 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CLEARANCE WARNING ECU ASSEMBLY (w/ Intuitive Parking Assist System)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I24 clearance warning ECU assembly connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-

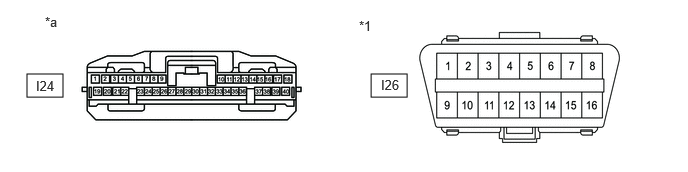

*a	Front view of wire harness connector (to Clearance Warning ECU Assembly)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I24-17 (R1) - I24-18 (R2)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I24-17 (R1) - I24-31 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I24-18 (R2) - I24-31 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I24-17 (R1) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I24-18 (R2) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

MULTIPLEX NETWORK DOOR ECU (w/ Power Back Door)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - 12/2024]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the U39 multiplex network door ECU connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Multiplex Network Door ECU)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
U39-10 (CANP) - U39-20 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
U39-10 (CANP) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
U39-20 (CANN) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
U39-10 (CANP) - U39-7 (ECUB)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
U39-20 (CANN) - U39-7 (ECUB)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

HEADLIGHT ECU SUB-ASSEMBLY LH (w/ AFS)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the A159 headlight ECU sub-assembly LH connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-

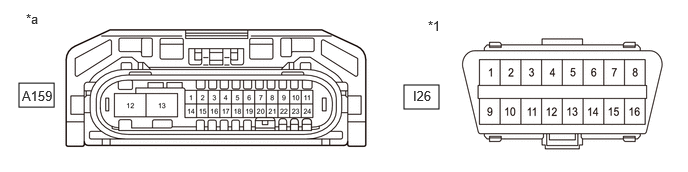

*a	Front view of wire harness connector (Headlight ECU Sub-assembly LH)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A159-24 (CANH) - A159-23 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
A159-24 (CANH) - A159-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A159-23 (CANL) - A159-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A159-24 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A159-23 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

HEADLIGHT ECU SUB-ASSEMBLY RH (w/ AFS)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the A160 headlight ECU sub-assembly RH connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-

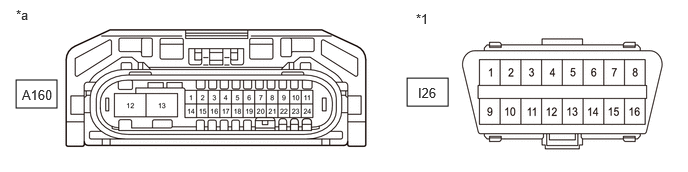

*a	Front view of wire harness connector (Headlight ECU Sub-assembly RH)	-	-

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A160-24 (CANH) - A160-23 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
A160-24 (CANH) - A160-12 (GND)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A160-23 (CANL) - A160-12 (GND)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
A160-24 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
A160-23 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

DCM (TELEMATICS TRANSCEIVER) (w/ Telematics Transceiver)

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2022 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I200 DCM (telematics transceiver) connector.

Measure the resistance according to the value(s) in the table below.

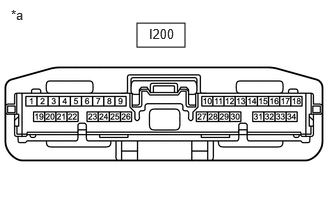

*a	Front view of wire harness connector (to DCM (Telematics Transceiver))

Standard Resistance

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I200-25 (CANP) - I200-26 (CANN)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I200-25 (CANP) - I200-20 (E)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I200-26 (CANN) - I200-20 (E)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I200-25 (CANP) - I200-1 (+B)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I200-26 (CANN) - I200-1 (+B)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

ENGINE STOP AND START ECU

Refer to Terminals of ECU.

Refer to TERMINALS OF ECU [11/2023 - ]

Disconnect the cable from the negative (-) auxiliary battery terminal.
Disconnect the I230 engine stop and start ECU connector.

Measure the resistance according to the value(s) in the table below.

*1	DLC3	-	-
*a	Front view of wire harness connector (to Engine Stop and Start ECU)	-	-

Standard Resistance

BUS 2 BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I230-13 (CANH) - I230-14 (CANL)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I230-13 (CANH) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I230-14 (CANL) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I230-13 (CANH) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I230-14 (CANL) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

CHASSIS LOCAL BUS BRANCH LINES

Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
I230-15 (LC1H) - I230-16 (LC1L)	HIGH-level CAN bus line - LOW-level CAN bus line	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
I230-15 (LC1H) - I26-4 (CG)	HIGH-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I230-16 (LC1L) - I26-4 (CG)	LOW-level CAN bus line - Ground	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
I230-15 (LC1H) - I26-16 (BAT)	HIGH-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
I230-16 (LC1L) - I26-16 (BAT)	LOW-level CAN bus line - Auxiliary battery positive (+)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
