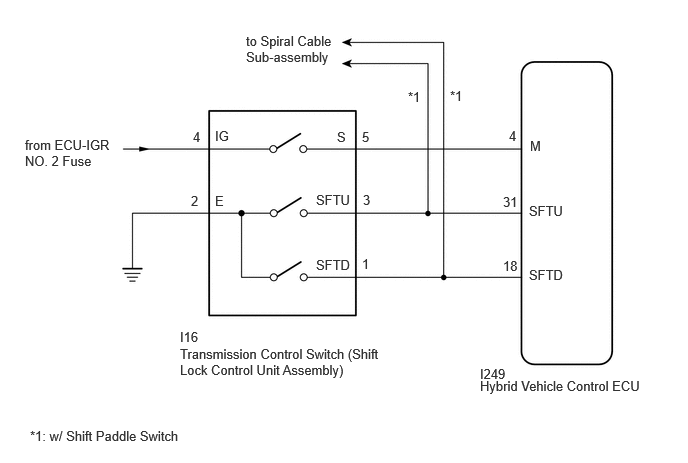

Transmission Control Switch Circuit [11/2022 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

Refer to the wiring diagram for the shift paddle switch circuit. (w/ Shift paddle switch)

Refer to WIRING DIAGRAM

GTY1104335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
