Parts Location [11/2022 - ]: Illustration
WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

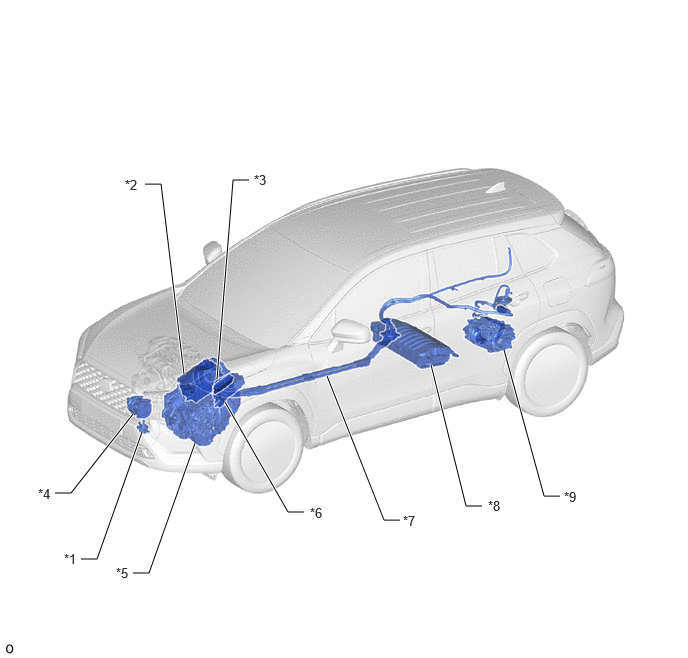

| *1 | INVERTER WATER PUMP ASSEMBLY | *2 | INVERTER WITH CONVERTER ASSEMBLY |
| *3 | ECM | *4 | COMPRESSOR WITH MOTOR ASSEMBLY |
| *5 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY |
| *7 | HV FLOOR UNDER WIRE | *8 | HV BATTERY |
| *9 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | - | - |

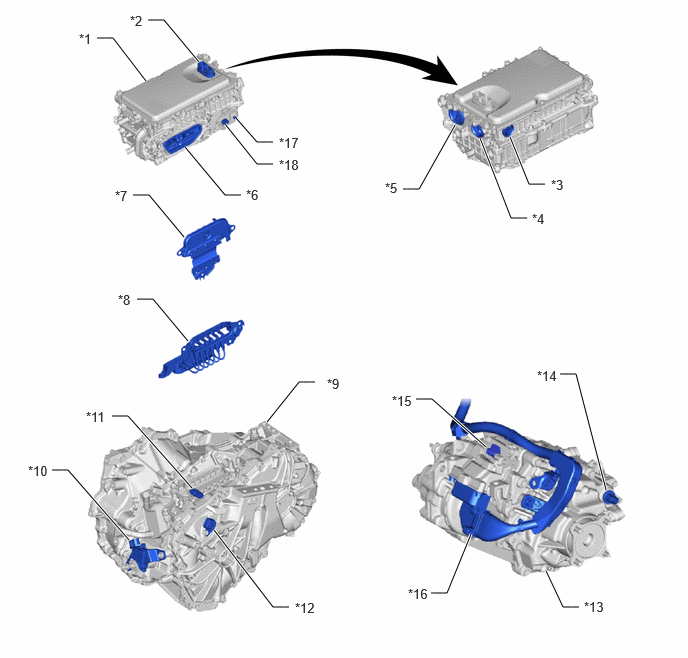

| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | LOW VOLTAGE CONNECTOR |
| *3 | HV AIR CONDITIONING WIRE CONNECTION | *4 | HV FLOOR UNDER WIRE (HV BATTERY) CONNECTION |
| *5 | HV FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE) CONNECTION | *6 | MOTOR CABLE CONNECTION |
| *7 | INVERTER COVER - INTERLOCK |
*8 | MOTOR CABLE |
| *9 | HYBRID VEHICLE TRANSAXLE ASSEMBLY | *10 | SHIFT LEVER POSITION SENSOR |
| *11 | MOTOR TEMPERATURE SENSOR AND GENERATOR TEMPERATURE SENSOR CONNECTOR | *12 | MOTOR RESOLVER, GENERATOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR |
| *13 | REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY | *14 | REAR MOTOR RESOLVER AND TRANSMISSION FLUID TEMPERATURE SENSOR CONNECTOR |
| *15 | REAR MOTOR TEMPERATURE SENSOR CONNECTOR | *16 | HV FLOOR UNDER WIRE (REAR TRACTION MOTOR CABLE) |
| *17 | AMD TERMINAL | *18 | LOW VOLTAGE CONNECTOR (DC/DC CONVERTER) |

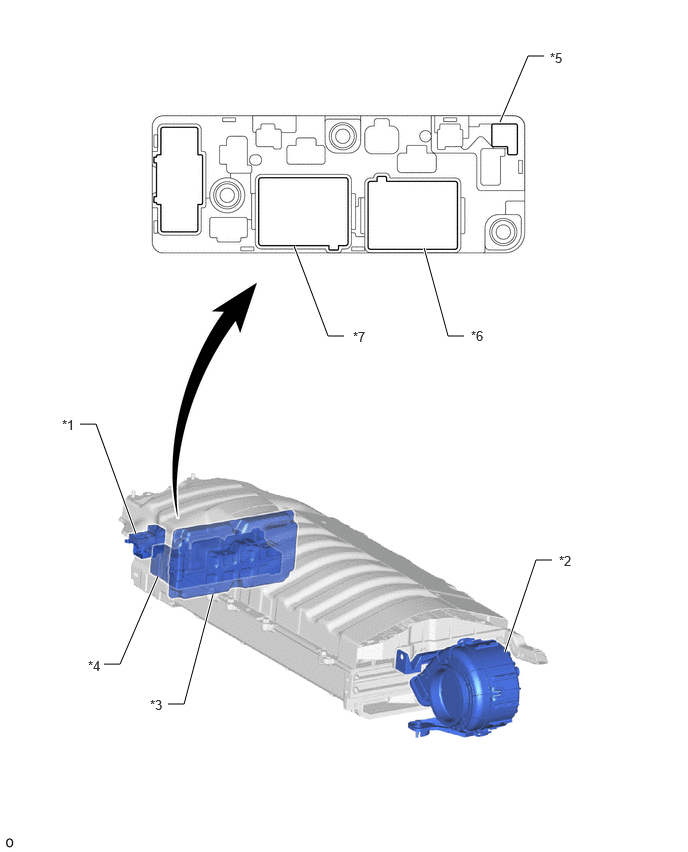

| *1 | SERVICE PLUG GRIP | *2 | BATTERY COOLING BLOWER ASSEMBLY |
| *3 | BATTERY ECU ASSEMBLY | *4 | HV BATTERY JUNCTION BLOCK ASSEMBLY |
| *5 | BATTERY CURRENT SENSOR | *6 | SMRB |
| *7 | SMRG | - | - |

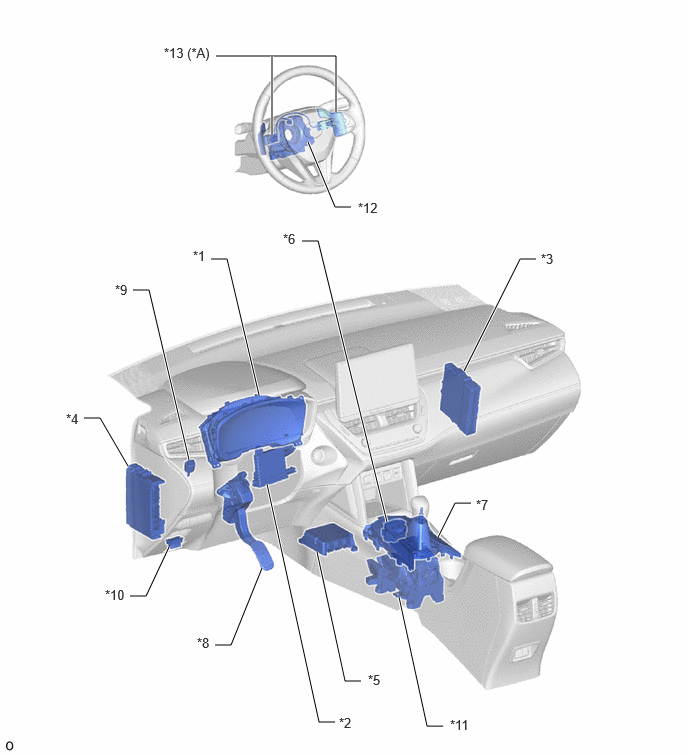

| *A | w/ Shift Paddle Switch | - | - |
| *1 | COMBINATION METER ASSEMBLY | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | HYBRID VEHICLE CONTROL ECU | *4 | POWER DISTRIBUTION BOX ASSEMBLY |
| *5 | AIRBAG SENSOR ASSEMBLY | *6 | COMBINATION SWITCH ASSEMBLY - DRIVE MODE SELECT SWITCH - EV DRIVE MODE SWITCH |
| *7 | POSITION INDICATOR HOUSING ASSEMBLY | *8 | ACCELERATOR PEDAL SENSOR ASSEMBLY |
| *9 | STOP LIGHT SWITCH ASSEMBLY | *10 | DLC3 |
| *11 | SHIFT LOCK CONTROL UNIT ASSEMBLY - TRANSMISSION CONTROL SWITCH |
*12 | SPIRAL CABLE SUB-ASSEMBLY |
| *13 | SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY) |
- | - |
