Components [11/2022 - ]

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

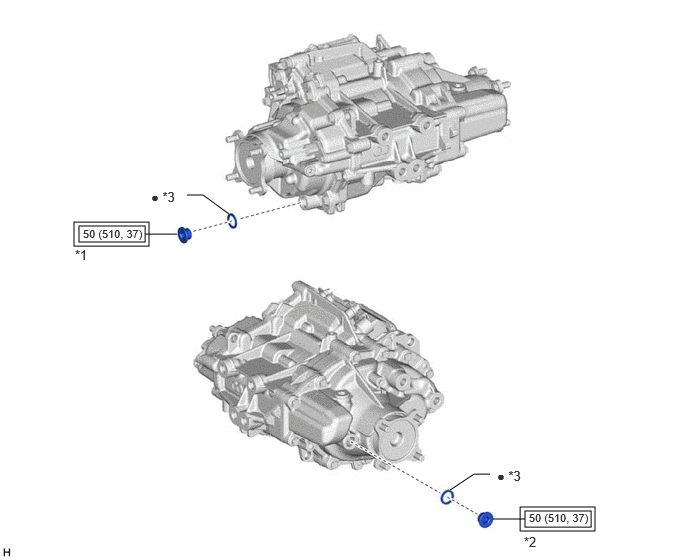

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications
GTY1112092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 DRAIN PLUG *2 FILLER PLUG
*3 GASKET - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) • Non-reusable part
