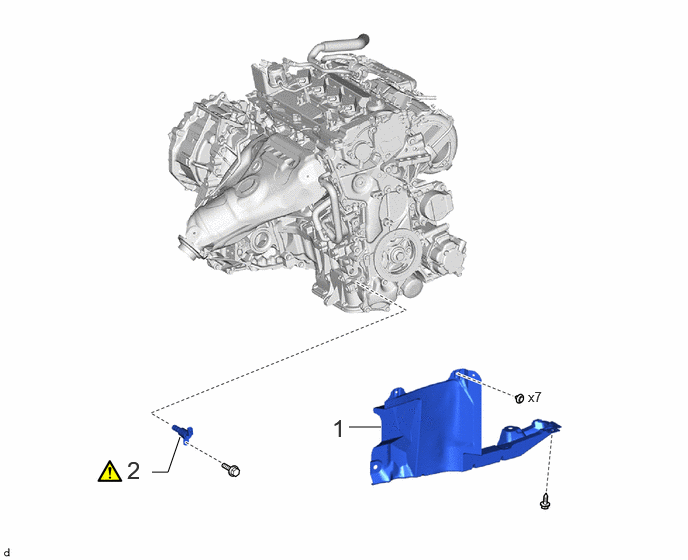

COMPONENTS (REMOVAL)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR ENGINE UNDER COVER RH | 51443C | - | - | - |
| 2 | OIL PRESSURE CONTROL VALVE ASSEMBLY | 15250 | See step 2 | - | - |
NOTE:
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2022 - ]
