Caution / Notice / Hint

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2022 - ]



COMPONENTS (REASSEMBLY)

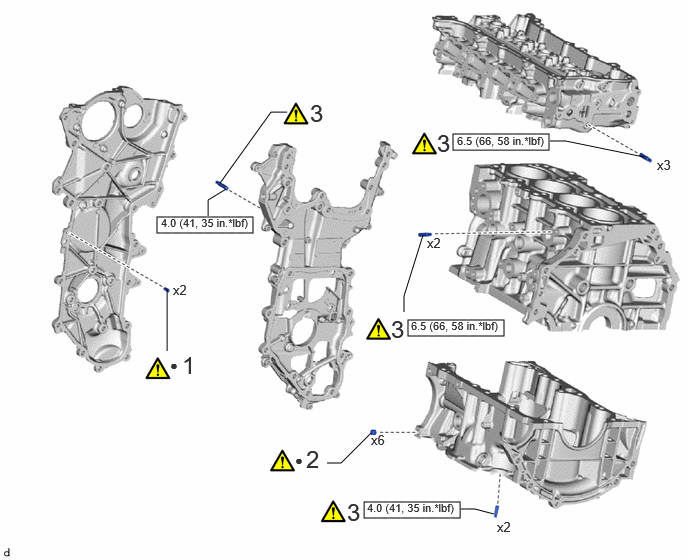

Fig 1: Engine Unit Reassembly Components With Torque Specifications (1 Of 6)
GTY1104407GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1 STRAIGHT PIN - See step  1 - -
2 RING PIN - See step  2 - -
3 STUD BOLT - See step  3 - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part

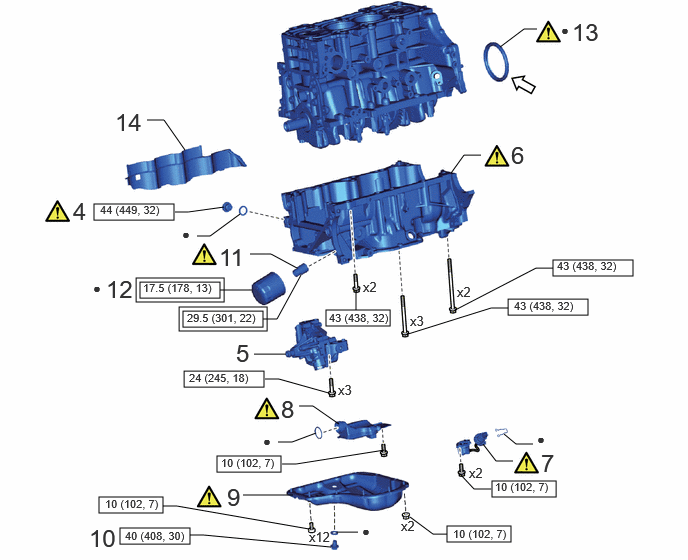

Fig 2: Engine Unit Reassembly Components With Torque Specifications (2 Of 6)
GTY1250953GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4 STRAIGHT SCREW PLUG - See step  4 - -
5 OIL PUMP ASSEMBLY 15100 - - -
6 STIFFENING CRANKCASE ASSEMBLY 11420 See step  7 - -
7 ENGINE OIL LEVEL SENSOR 89491 See step  8 - -
8 OIL STRAINER SUB-ASSEMBLY 15104 See step  9 - -
9 OIL PAN SUB-ASSEMBLY 12101 See step  10 - -
10 OIL PAN DRAIN PLUG 12101A - - -
11 OIL FILTER UNION 15600A See step  12 - -
12 OIL FILTER SUB-ASSEMBLY 15601 - - -
13 REAR ENGINE OIL SEAL 11401L See step  14 - -
14 CYLINDER BLOCK WATER JACKET SPACER 11445 - - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
MP grease • Non-reusable part

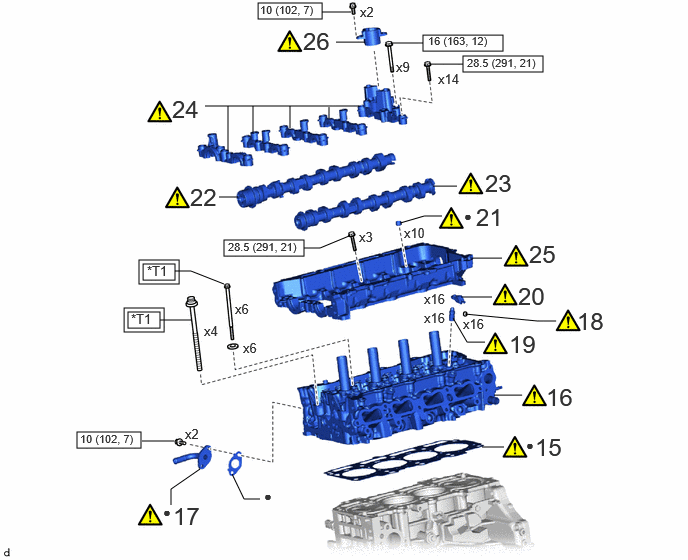

Fig 3: Engine Unit Reassembly Components With Torque Specifications (3 Of 6)
GTY1252059GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15 CYLINDER HEAD GASKET 11115 See step  16 - -
16 CYLINDER HEAD SUB-ASSEMBLY 11101 See step  17 - -
17 NO. 1 WATER BY-PASS PIPE 16268 See step  18 - -
18 VALVE STEM CAP 13716 See step  19 - -
19 VALVE LASH ADJUSTER ASSEMBLY 13750 See step  20 - -
20 NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY 13801 See step  21 - -
21 CAMSHAFT BEARING CAP SETTING RING PIN 11155B See step  22 - -
22 EXHAUST CAMSHAFT SUB-ASSEMBLY 13502B See step  23 - -
23 INTAKE CAMSHAFT SUB-ASSEMBLY 13501A See step  24 - -
24 CAMSHAFT BEARING CAP - See step  25 - -
25 CAMSHAFT HOUSING SUB-ASSEMBLY 11103 See step  26 - -
26 FUEL PUMP LIFTER GUIDE 23477 See step  27 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part - -
*T1 1st: 50 (510, 37)
2nd: Turn 90°
3rd: Turn 90°		 - -

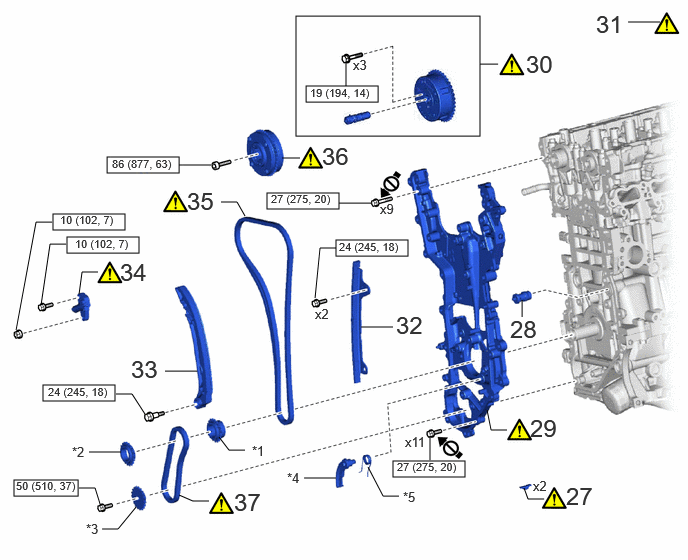

Fig 4: Engine Unit Reassembly Components With Torque Specifications (4 Of 6)
GTY1251438GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
27 CRANKSHAFT TIMING GEAR KEY 13471A See step  28 - -
28 OIL NOZZLE VALVE SUB-ASSEMBLY 15703A - - -
29 TIMING CHAIN COVER ASSEMBLY 11310 See step  30 - -
30 CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY 13070A See step  31 - -
31 NO. 1 CYLINDER TO TDC (COMPRESSION) - See step  32 - -
32 NO. 1 CHAIN VIBRATION DAMPER 13561 - - -
33 CHAIN TENSIONER SLIPPER 13559 - - -
34 NO. 1 CHAIN TENSIONER ASSEMBLY 13540 See step  35 - -
35 CHAIN SUB-ASSEMBLY 13506 See step  36 - -
36 CAMSHAFT TIMING GEAR ASSEMBLY 13050 See step  37 - -
37 OIL PUMP DRIVE CHAIN SUB-ASSEMBLY 13507A See step  38 - -
*1 CRANKSHAFT TIMING SPROCKET *2 OIL PUMP DRIVE SPROCKET
*3 OIL PUMP DRIVE SHAFT SPROCKET *4 CHAIN TENSIONER PLATE
*5 CHAIN DAMPER SPRING - -
N*m (kgf*cm, ft.*lbf): Specified torque Do not apply lubrications to the threaded parts

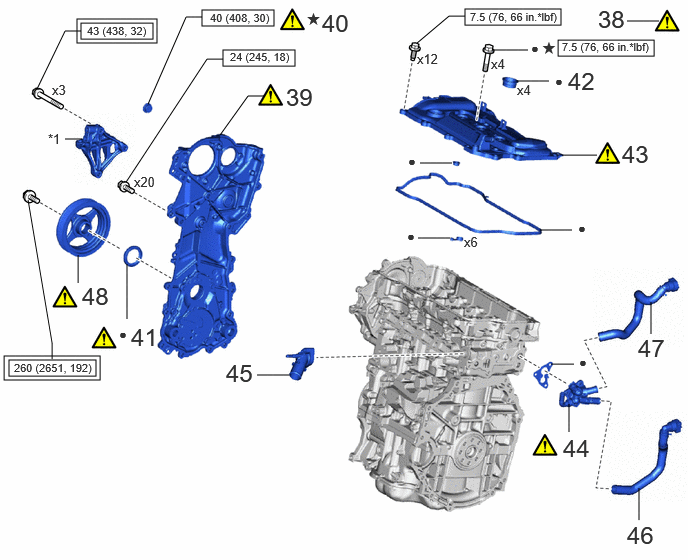

Fig 5: Engine Unit Reassembly Components With Torque Specifications (5 Of 6)
GTY1252617GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
38 NO. 1 CYLINDER TO TDC (COMPRESSION) - See step  39 - -
39 NO. 2 TIMING CHAIN COVER ASSEMBLY 11320B See step  40 - -
40 STRAIGHT SCREW PLUG - See step  41 - -
41 TIMING CHAIN COVER OIL SEAL 11301C See step  42 - -
42 SPARK PLUG TUBE GASKET 11193 - - -
43 CYLINDER HEAD COVER SUB-ASSEMBLY 11201 See step  44 - -
44 WATER BY-PASS OUTLET 16351 See step  45 - -
45 WATER OUTLET SUB-ASSEMBLY 16304 - - -
46 OUTLET HEATER WATER HOSE - - - -
47 INLET HEATER WATER HOSE - - - -
48 CRANKSHAFT PULLEY ASSEMBLY 13470 See step  49 - -
*1 ENGINE MOUNTING BRACKET RH - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part * Precoated part

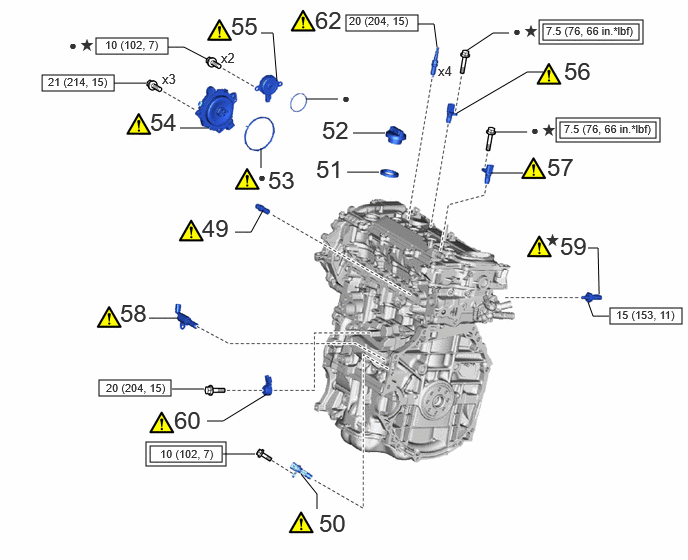

Fig 6: Engine Unit Reassembly Components With Torque Specifications (6 Of 6)
GTY1252320GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002© TOYOTA, LICENSE AGREEMENT TMS1002
Callout - Procedure Part Name Code
GTY993405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
49 PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY) 12204C See step  50 - -
50 CRANKSHAFT POSITION SENSOR 11401G See step  51 - -
51 OIL FILLER CAP GASKET 12108A - - -
52 OIL FILLER CAP ASSEMBLY 12180E - - -
53 CAM TIMING CONTROL MOTOR O-RING 13090E - - -
54 CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY 13090D See step  55 - -
55 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY 15370 See step  56 - -
56 CAMSHAFT POSITION SENSOR (for Exhaust Side) 11102A See step  57 - -
57 CAMSHAFT POSITION SENSOR (for Intake Side) 11102A See step  58 - -
58 OIL PRESSURE CONTROL VALVE ASSEMBLY 15250 See step  59 - -
58 OIL PRESSURE AND TEMPERATURE SENSOR 89448D See step  60 - -
59 KNOCK CONTROL SENSOR 89615 See step  61 - -
60 SPARK PLUG 19100P See step  62 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
• Non-reusable part * Precoated part
