COMPONENTS (DISASSEMBLY)

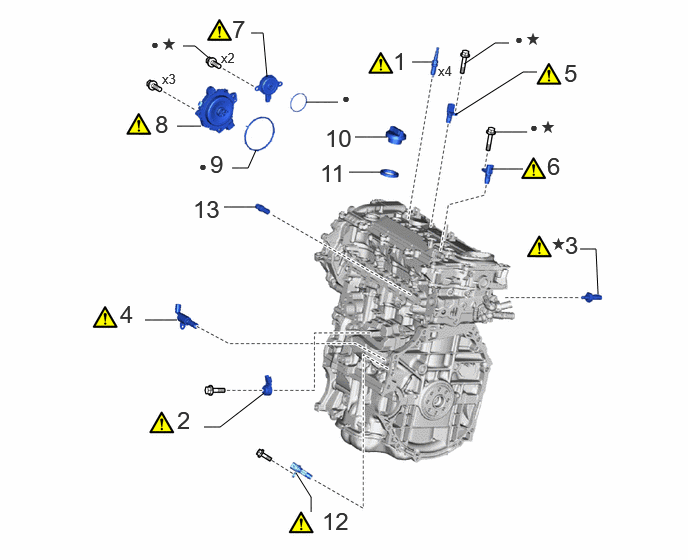

Fig 1: Engine Unit Disassembly Components (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1	SPARK PLUG	19100P	See step 1	-	-
2	KNOCK CONTROL SENSOR	89615	See step 2	-	-
3	OIL PRESSURE AND TEMPERATURE SENSOR	89448D	See step 3	-	-
4	OIL PRESSURE CONTROL VALVE ASSEMBLY	15250	See step 4	-	-
5	CAMSHAFT POSITION SENSOR (for Intake Side)	11102A	See step 5	-	-
6	CAMSHAFT POSITION SENSOR (for Exhaust Side)	11102A	See step 6	-	-
7	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	15370	See step 7	-	-
8	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY	13090D	See step 8	-	-
9	CAM TIMING CONTROL MOTOR O-RING	13090E	-	-	-
10	OIL FILLER CAP ASSEMBLY	12180E	-	-	-
11	OIL FILLER CAP GASKET	12108A	-	-	-
12	CRANKSHAFT POSITION SENSOR	11401G	See step 12	-	-
13	PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)	12204C	-	-	-

•

Non-reusable part

Precoated part

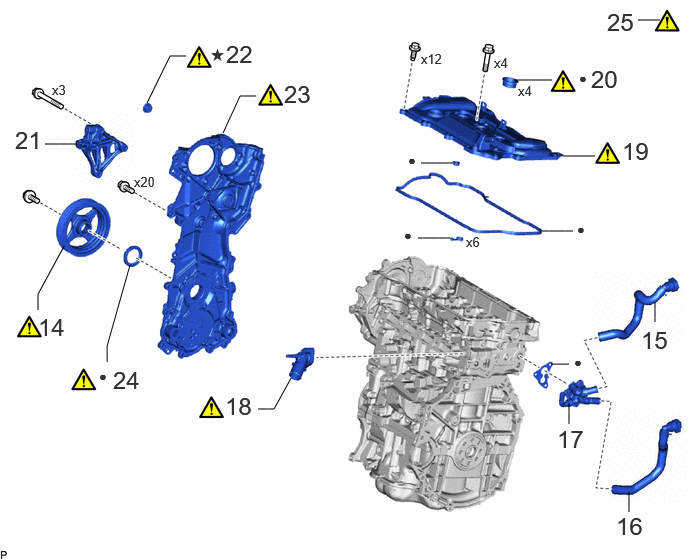

Fig 2: Engine Unit Disassembly Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14	CRANKSHAFT PULLEY ASSEMBLY	13470	See step 14	-	-
15	INLET HEATER WATER HOSE	-	-	-	-
16	OUTLET HEATER WATER HOSE	-	-	-	-
17	WATER OUTLET SUB-ASSEMBLY	16304	-	-	-
18	WATER BY-PASS OUTLET	16351	See step 18	-	-
19	CYLINDER HEAD COVER SUB-ASSEMBLY	11201	See step 19	-	-
20	SPARK PLUG TUBE GASKET	11193	See step 20	-	-
21	ENGINE MOUNTING BRACKET RH	12315A	-	-	-
22	STRAIGHT SCREW PLUG	-	See step 22	-	-
23	NO. 2 TIMING CHAIN COVER ASSEMBLY	11320B	See step 23	-	-
24	TIMING CHAIN COVER OIL SEAL	11301C	See step 24	-	-
25	NO. 1 CYLINDER TO TDC (COMPRESSION)	-	See step 25	-	-

•

Non-reusable part

Precoated part

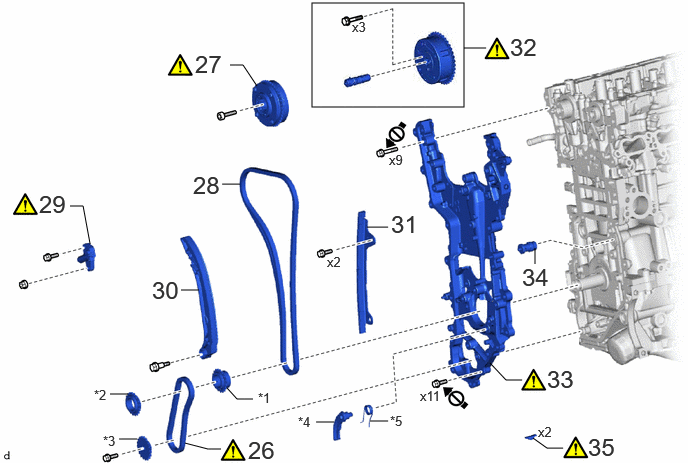

Fig 3: Engine Unit Disassembly Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26	OIL PUMP DRIVE CHAIN SUB-ASSEMBLY	13507A	See step 26	-	-
27	CAMSHAFT TIMING GEAR ASSEMBLY	13050	See step 27	-	-
28	CHAIN SUB-ASSEMBLY	13506	-	-	-
29	NO. 1 CHAIN TENSIONER ASSEMBLY	13540	See step 29	-	-
30	CHAIN TENSIONER SLIPPER	13559	-	-	-
31	NO. 1 CHAIN VIBRATION DAMPER	13561	-	-	-
32	CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY	13070A	See step 32	-	-
33	TIMING CHAIN COVER ASSEMBLY	11310	See step 33	-	-
34	OIL NOZZLE VALVE SUB-ASSEMBLY	15703A	-	-	-
35	CRANKSHAFT TIMING GEAR KEY	13471A	See step 35	-	-

*1	CRANKSHAFT TIMING SPROCKET	*2	OIL PUMP DRIVE SPROCKET
*3	OIL PUMP DRIVE SHAFT SPROCKET	*4	CHAIN TENSIONER PLATE
*5	CHAIN DAMPER SPRING	-	-

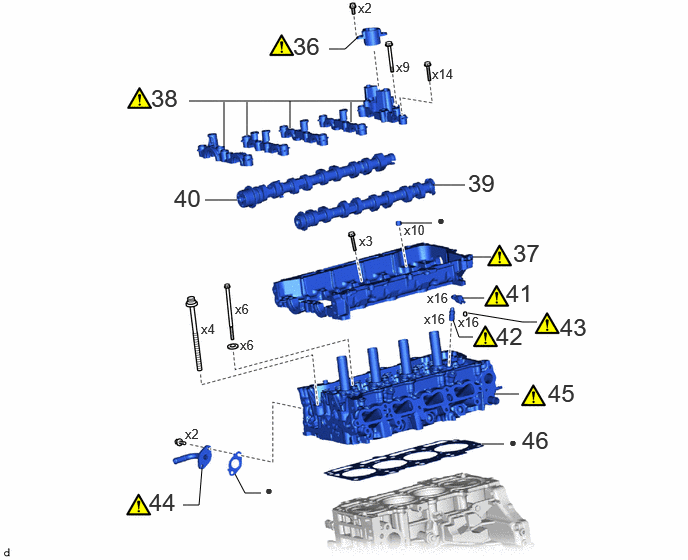

Fig 4: Engine Unit Disassembly Components (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
36	FUEL PUMP LIFTER GUIDE	23477	See step 36	-	-
37	CAMSHAFT HOUSING SUB-ASSEMBLY	11103	See step 37	-	-
38	CAMSHAFT BEARING CAP	-	See step 38	-	-
39	INTAKE CAMSHAFT SUB-ASSEMBLY	13501A	-	-	-
40	EXHAUST CAMSHAFT SUB-ASSEMBLY	13502B	-	-	-
41	NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY	13801	See step 41	-	-
42	VALVE LASH ADJUSTER ASSEMBLY	13750	See step 42	-	-
43	VALVE STEM CAP	13716	See step 43	-	-
44	NO. 1 WATER BY-PASS PIPE	16268	See step 44	-	-
45	CYLINDER HEAD SUB-ASSEMBLY	11101	See step 45	-	-
46	CYLINDER HEAD GASKET	11115	-	-	-

•

Non-reusable part

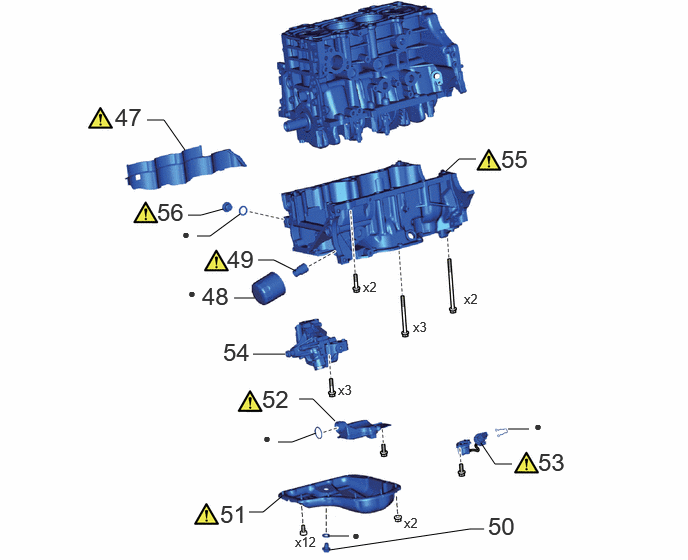

Fig 5: Engine Unit Disassembly Components (5 Of 6)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
47	CYLINDER BLOCK WATER JACKET SPACER	11445	See step 47	-	-
48	OIL FILTER SUB-ASSEMBLY	15601	-	-	-
49	OIL FILTER UNION	15600A	See step 49	-	-
50	OIL PAN DRAIN PLUG	12101A	-	-	-
51	OIL PAN SUB-ASSEMBLY	12101	See step 51	-	-
52	OIL STRAINER SUB-ASSEMBLY	15104	See step 52	-	-
53	ENGINE OIL LEVEL SENSOR	89491	See step 53	-	-
54	OIL PUMP ASSEMBLY	15100	-	-	-
55	STIFFENING CRANKCASE ASSEMBLY	11420	See step 55	-	-
56	STRAIGHT SCREW PLUG	-	See step 56	-	-

•

Non-reusable part

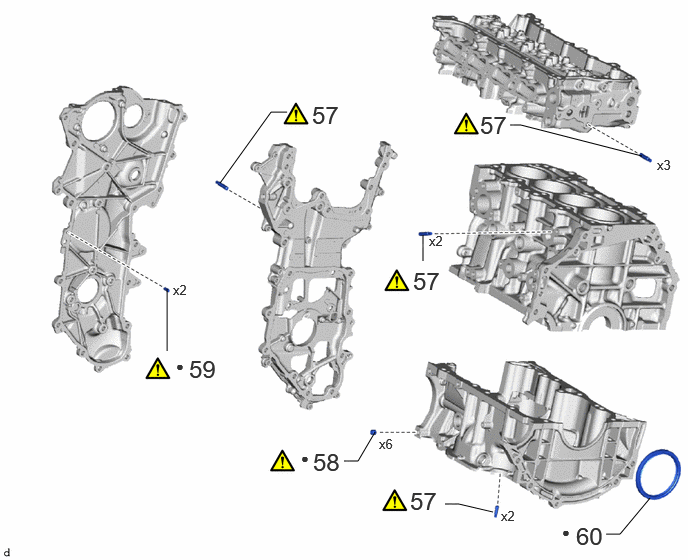

Fig 6: Engine Unit Disassembly Components (6 Of 6)

Procedure		Part Name Code	Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
57	STUD BOLT	-	See step 57	-	-
58	RING PIN	-	See step 58	-	-
59	STRAIGHT PIN	-	See step 59	-	-
60	REAR ENGINE OIL SEAL	11401L	-	-	-

•

Non-reusable part
