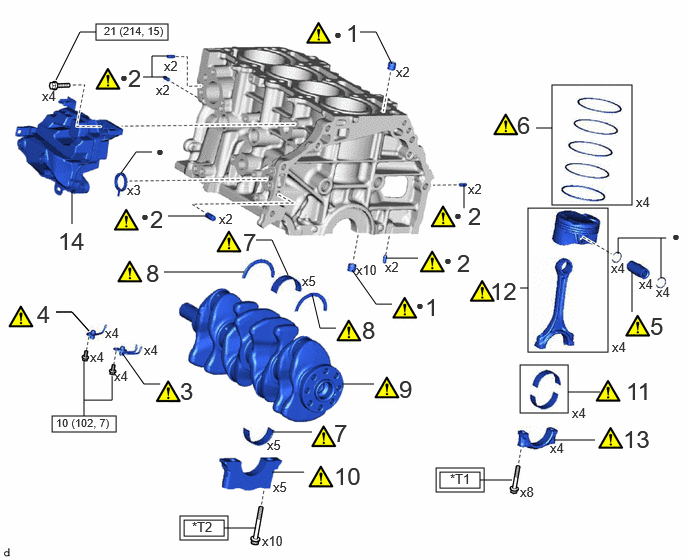

COMPONENTS (REASSEMBLY)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | RING PIN | 11115A | See step 1 | - | - |
| 2 | STRAIGHT PIN | 11434Q | See step 2 | - | - |
| 3 | NO. 2 OIL NOZZLE SUB-ASSEMBLY | 15709 | See step 3 | - | - |
| 4 | NO. 1 OIL NOZZLE SUB-ASSEMBLY | 15708 | See step 4 | - | - |
| 5 | PISTON PIN | - | See step 5 | - | - |
| 6 | PISTON RING SET | 13011 | See step 6 | - | - |
| 7 | CRANKSHAFT BEARING | - | See step 7 | - | - |
| 8 | CRANKSHAFT THRUST WASHER | 11791 | See step 8 | - | - |
| 9 | CRANKSHAFT | 13411 | See step 9 | - | - |
| 10 | CRANKSHAFT BEARING CAP | - | See step 10 | - | - |
| 11 | CONNECTING ROD BEARING | - | See step 11 | - | - |
| 12 | PISTON WITH CONNECTING ROD | - | See step 12 | - | - |
| 13 | CONNECTING ROD BEARING CAP | - | See step 13 | - | - |
| 14 | NO. 1 VENTILATION CASE | 12211 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | - | - |
| *T1 | 1st: 38 (387, 28) 2nd: Turn 90° |
*T2 | 1st: 61 (622, 45) 2nd: Turn 90° |
