Parts Location [11/2022 - ]: Illustration

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
GTY1106948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

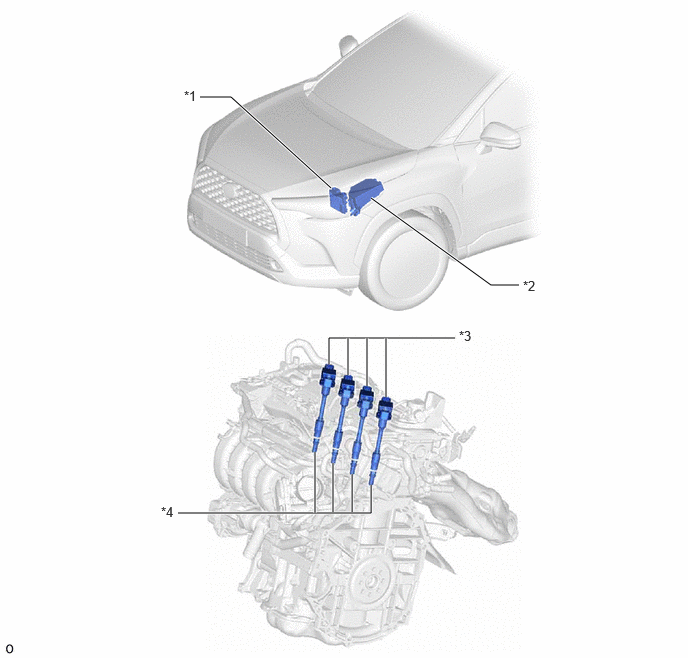

*1 ECM *2 NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY
- INJ FUSE
*3 IGNITION COIL ASSEMBLY *4 SPARK PLUG
