On-Vehicle Inspection [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT INTAKE SYSTEM

WARNING:

To prevent injury due to contact with an operating cooling fan, keep your hands and clothing away from the cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Perform "Inspection After Repair" after repairing vacuum leaks in the intake system.

Refer to INITIALIZATION [11/2022 - ]

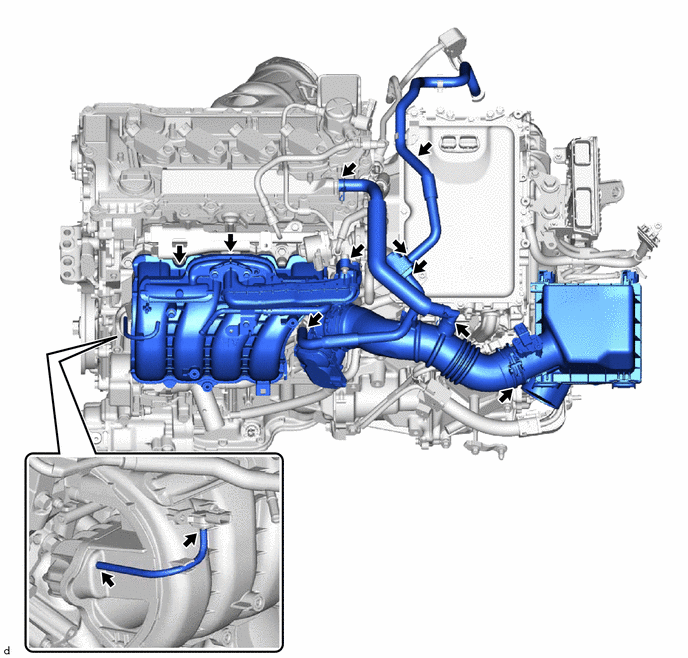

Check that there are no vacuum leaks at the points shown in the illustration.

PERFORM INITIALIZATION
1. Perform Inspection After Repair after repairing vacuum leaks in the intake system.
  Refer to INITIALIZATION [11/2022 - ]
