On-Vehicle Inspection [11/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Toyota Corolla Cross, 2024 Toyota Corolla Cross, and 2023 Toyota Corolla Cross. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK AUXILIARY BATTERY
    1. Check that the auxiliary battery cables are connected to the correct terminals.

      If they are not, connect them properly.

    2. Check the auxiliary battery for damage and deformation. If severe damage, deformation or leakage is found, replace the auxiliary battery.
    3. Check the electrolyte level in each cell.
      1. If the electrolyte level is below the lower line, add distilled water to each cell. Then, recharge the auxiliary battery and check the electrolyte specific gravity.

        Standard Specific Gravity

        1.25 or higher at 20°C (68°F)

      2. If the electrolyte level is above the lower line, check the auxiliary battery voltage when cranking the engine. If the auxiliary battery voltage is less than 11 V, recharge or replace the auxiliary battery.

        HINT:

        Before checking the auxiliary battery voltage, turn off all the electrical systems (headlights, blower motor, rear window defogger, etc.).

  2. CHECK AUXILIARY BATTERY VOLTAGE
    1. Turn the ignition switch off and turn on the high beam headlights for 30 seconds. This will remove the surface charge from the auxiliary battery.
    2. Measure the auxiliary battery voltage according to the value(s) in the table below.

      Result

      Tester Connection Condition Specified Condition Result
      Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal 20°C (68°F), Ignition switch off 12.0 V or higher Auxiliary battery is OK
      Less than 12.0 V Recharge auxiliary battery
  3. RECHARGE AUXILIARY BATTERY
    1. Recharge the auxiliary battery.

      HINT:

      • Recharge the auxiliary battery according to the charger's instructions.
      • Apply the appropriate charging current according to the type of auxiliary battery shown in the table below.
      Charge Method Charging Current
      Normal Below 5 A
      Quick Below 15 A
    2. Turn the ignition switch off and turn on the high beam headlights for 30 seconds. This will remove the surface charge from the auxiliary battery.
    3. Measure the auxiliary battery voltage according to the value(s) in the table below.

      Result

      Tester Connection Condition Specified Condition Result
      Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal 20°C (68°F), Ignition switch off 12.0 V or higher Auxiliary battery is OK
      Less than 12.0 V Recharge auxiliary battery
  4. CHECK AUXILIARY BATTERY TERMINAL, FUSIBLE LINK AND FUSE
    1. Check that the auxiliary battery terminals are not loose or corroded.

      Positive (+) Auxiliary Battery Terminal

      Torque: 5.6 N*m (57 kgf*cm, 50 in.*lbf)

      Negative (-) Auxiliary Battery Terminal

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

      If a terminal is loose or corroded, tighten or clean the terminal.

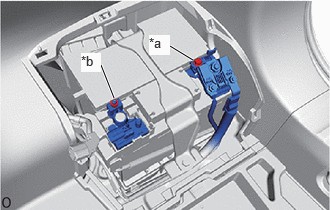

      GTY1108535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Positive (+) Auxiliary Battery Terminal
      *b Negative (-) Auxiliary Battery Terminal
    2. Measure the resistance of each fusible link and fuse for the auxiliary battery charging system.

      Standard Resistance

      Below 1 Ω

      If the result is not as specified, replace the fusible link or fuse as necessary.

  5. CHECK AMD TERMINAL
    WARNING:
    • This vehicle contains high voltage circuits standardized with orange colored wiring and connectors, so follow the instructions in this service information to perform the procedures correctly.

      Refer to PRECAUTION [11/2022 - ]

      GTY588409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If the correct procedures are not followed according to the instructions in this service information, there is a danger of electric shock from the high voltage circuits.
    • Be sure to wear insulating gloves when working on high voltage wiring or components.
      GTY588386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • If work is performed without wearing insulating gloves, there is a danger of electric shock.
    1. Remove the service plug grip.

      Refer to REMOVAL [11/2022 - ]

    2. Check that the AMD terminal is connected securely, and there is no contact problem.

      If there are any arc marks, replace the affected parts.

    3. Check that the nut for the AMD terminal is tightened to the specified torque.

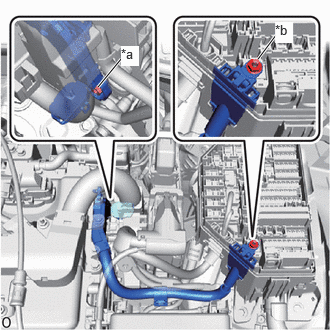

      GTY1110638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inverter with Converter Assembly Side
      *b No. 1 Engine Room Relay Block Side

      Inverter with Converter Assembly Side

      Torque: 10 N*m (102 kgf*cm, 89 in.*lbf)

      No. 1 Engine Room Relay Block Side

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

      If there are no arc marks and the AMD terminal connection is faulty, connect the AMD terminal securely.

    4. Install the service plug grip.

      Refer to INSTALLATION [11/2022 - ]

  6. CHECK DC/DC CONVERTER FUNCTION
    1. Connect the AC/DC 400 A probe to the positive (+) auxiliary battery cable.
      GTY1108212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Probe Direction
      *b Current Flowing into Auxiliary Battery
    2. Turn the ignition switch to ON (READY) and leave the vehicle as is until the electric current flowing to the auxiliary battery becomes 10 A or less.
    3. Turn on the high beam headlights, and turn the blower motor switch to the HI position and the rear window defogger on.
    4. Measure the current and voltage according to the value(s) in the table below.
      GTY1105734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Probe Direction
      *b Current Flowing from Auxiliary Battery

      Result

      Item Tester Connection Condition Specified Condition
      Current flowing from auxiliary battery Positive (+) auxiliary battery cable Ignition switch ON (READY)
      (The high beam headlights are on, the blower motor switch is in the HI position, and the rear window defogger is turned on.)
      0 A or less
      (No current from auxiliary battery)
      Auxiliary battery voltage Positive (+) auxiliary battery terminal - Negative (-) auxiliary battery terminal 12.5 to 15 V

      If the result is not as specified, replace the inverter with converter assembly.
